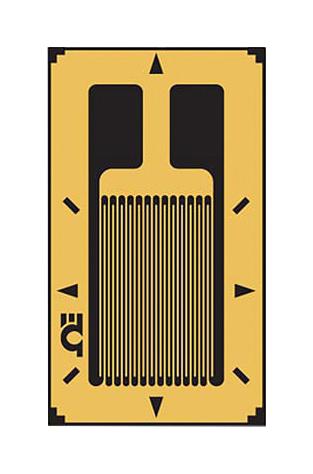

OMEGA SGD5350LY13 Stress Measurement Strain Gage
The SGD Series is a collection of precision linear pattern strain gages designed for static and dynamic applications. Featuring a very flexible, mechanically strong construction with small bending radius, these strain gages are suitable for high-accuracy stress analysis. They are available with ribbon leads or solder pads, and include various sizes and grid widths—narrow, medium, or wide—to match specific measurement needs. These gages are encapsulated in polyimide carriers, with clear alignment marks for easy installation, and can be affixed using cold or hot curing adhesives, making them ideal for experimental stress analysis on metals like steel and aluminum. They support both high-precision static and dynamic strain measurements.
OMEGA SGD5350LY13 Stress Measurement Strain Gage Specifications:
- Pattern models: SGD-5350LY13, 13 mm grid
- Carrier Material: Polyimide film with etched constantan foil grid
- Grid Width: 13 mm, 6.5 mm, 3.8 mm, 2 mm, 1.5 mm, 1 mm, 0.7 mm, 0.5 mm, 0.3 mm
- Pattern Lengths: 120 mm, 350 mm, 1000 mm, 350 mm, 120 mm, 240 mm, 350 mm, 120 mm, 350 mm
- Terminations: Ribbon leads or solder pads, BTPs available
- Temperature Compatibility: Suitable for measuring in steel and aluminum structures
- Joint Compatibility: Affix with cold or hot curing adhesives
- Maximum Bridge Voltage (Vrms): 50% of nominal resistance
- Uncompensated or temperature compensated models available (ST, AL, UNC)
- Application: Static and dynamic stress measurement in experimental stress analysis, high-gradient stress areas
Buy the Omega Series SGD Strain Gage: SGD-5350LY13
Order the Omega SGD series strain gage SGD 5350LY13 online now to achieve highly accurate stress and strain measurements in static and dynamic testing. These flexible, rugged, and easy-to-install gages are ideal for experimental stress analysis, capable of measuring in high-gradient areas and stress concentrations. With options for ribbon leads or solder pads, and a variety of sizes and patterns, your measurement needs are covered. Purchase today for dependable performance and precision engineering applications.
Get Omega SGD-5350LY13 today—built for precision stress analysis and long-lasting measurement accuracy.
Frequently Asked Questions
Where can I buy OMEGA SGD5350LY13?
You can click on the BUY or RFQ button to purchase SGD5350LY13 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SGD5350LY13?
You can download the SGD5350LY13 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SGD5350LY13?
OMEGA
