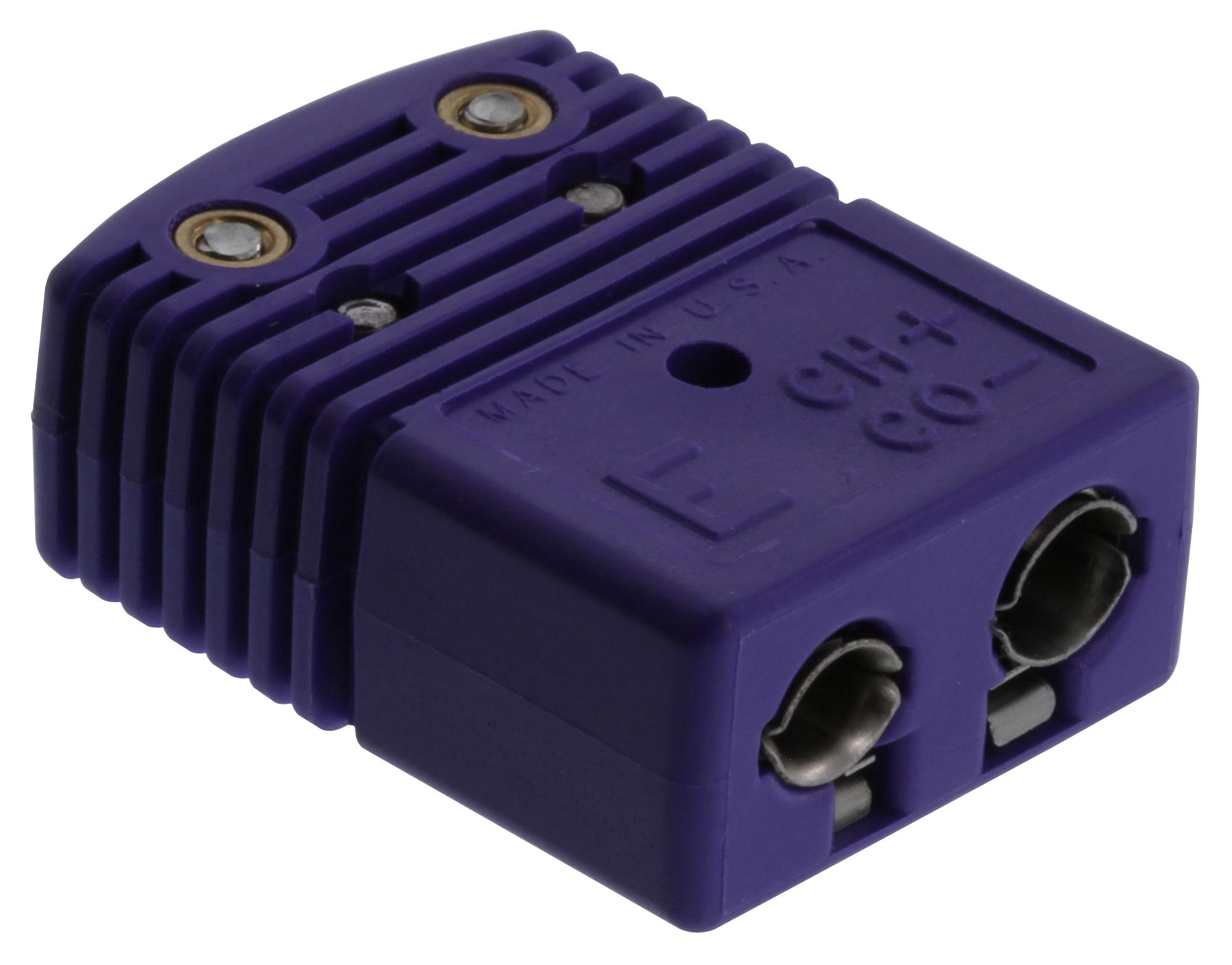

OMEGA OSTWEF High-Temperature Connector
The OSTWEF is a versatile and reliable electrical connector featuring a glass-filled nylon construction capable of withstanding temperatures from -29°C to 220°C. It offers easy wire acceptance for stranded or solid wire up to 1.6 mm diameter, with captive cover screws and a write-on window for identification. Designed with a universal socket that accepts both standard and miniature plugs, it includes internal wire dividers, quick-connect washers, and optional silicon strain relief grommets for added durability. Suitable for industrial applications requiring secure, high-temperature electrical connections, it is available in various configurations with corrosion-resistant features.
OMEGA OSTWEF High-Temperature Connector Specifications:
- Material: Glass-filled nylon
- Temperature Range: -29°C to 220°C
- Wire Acceptance: Up to 1.6 mm diameter
- Features: Captive cover screws, write-on window, internal wire divider
- Design: Universal socket accepting standard and miniature plugs
- Additional: Silicone strain relief grommet optional, quick-connect washers available
- Certifications: U.S patent pending, international patents pending
- Color Coding: ANSI or IEC compliance
- Construction: Hollow-pin, reversible basic pair, available in IEC and thermocouple ranges
- Dimensions: Compatible with standard panel thickness, safe operating voltage varies by configuration
Buy the Omega OSTWEF – Reliable High-Temperature Electrical Connector for Industrial Applications
Enhance your industrial wiring with the Omega OSTWEF high-temperature connector, designed for temperature ranges from -29°C to 220°C. It accepts stranded or solid wire up to 1.6 mm diameter, featuring captive cover screws and a write-on window for easy identification. The connector's universal socket accepts both standard and miniature plugs, ensuring flexibility. Built with durable materials like glass-filled nylon, it offers reliable performance in demanding environments. Order online today for rapid delivery and superior quality in your industrial electrical systems.
Order your Omega Series OSTWEF high-temperature connector today and ensure secure, durable electrical connections for demanding industrial projects.
