OMEGA FMA1607A Gas Flow Meter

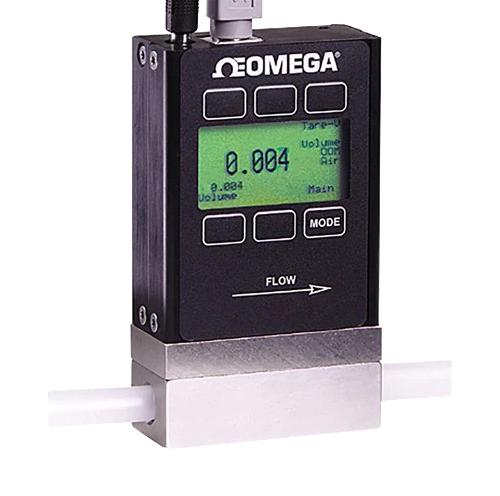

The FMA-1600A series mass and volumetric flow meters by Omega utilize differential pressure within a laminar flow element to accurately measure gas flow rates. They feature a laminar flow device that ensures streamlined flow, facilitating direct relation of volumetric flow to pressure drop per Poiseuille law. Equipped with sensors for temperature and pressure correction, they deliver precise mass flow readings. Suitable for over 130 gases, these meters are calibration-certified, require no warm-up or straight pipe runs, and support RS232 communication. With a turndown ratio of 200:1 and maximum flow of 10 SLPM, they are ideal for industrial gas measurement applications.
OMEGA FMA1607A Gas Flow Meter Specifications:
- Accuracy: ±(0.8% of reading + 0.2% FS)
- Repeatability: ±0.2%
- Turndown Ratio: 200:1
- Maximum Flow Rate: 10 SLPM
- Response Time: 10 ms typical, adjustable via RS232
- Output: 0 to 5 V standard, optional 4 to 20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Zero Shift: 0.02% FS/°C/atm
- Span Shift: 0.02% FS/°C/atm
- Humidity Range: 0 to 100% non-condensing
- Maximum Pressure: 145 psig
- Supply Voltage: 7 to 30 Vdc
- Wetted Parts: 302 and 303 stainless steel, FKM, silicone RTV, glass reinforced PPS, epoxy, aluminum, gold, brass, 430 FR stainless, silicon, glass
- Connections: 1/8 FNPT port, cable options for RS232 or analog outputs
Buy the Buy Omega FMA-1600A Gas Flow Part Number FMA-1607A Online
Experience accurate and reliable gas flow measurement with the Omega FMA-1600A series. These meters are calibrated for over 130 gases, offering high precision with ±0.8% accuracy plus 0.2% full scale, and provide digital RS232 communication. Designed for ease, they require no straight pipe runs or warm-up time, making installation straightforward. Suitable for various industrial gases, with features including a 200:1 turndown ratio, maximum flow of 10 SLPM, and operating temperature range of -10 to 50°C. Get yours online today for quality gas flow monitoring.
Order your Omega FMA-1607A series gas flow meter today and ensure precise gas measurement for your industrial applications with reliable digital output options.
