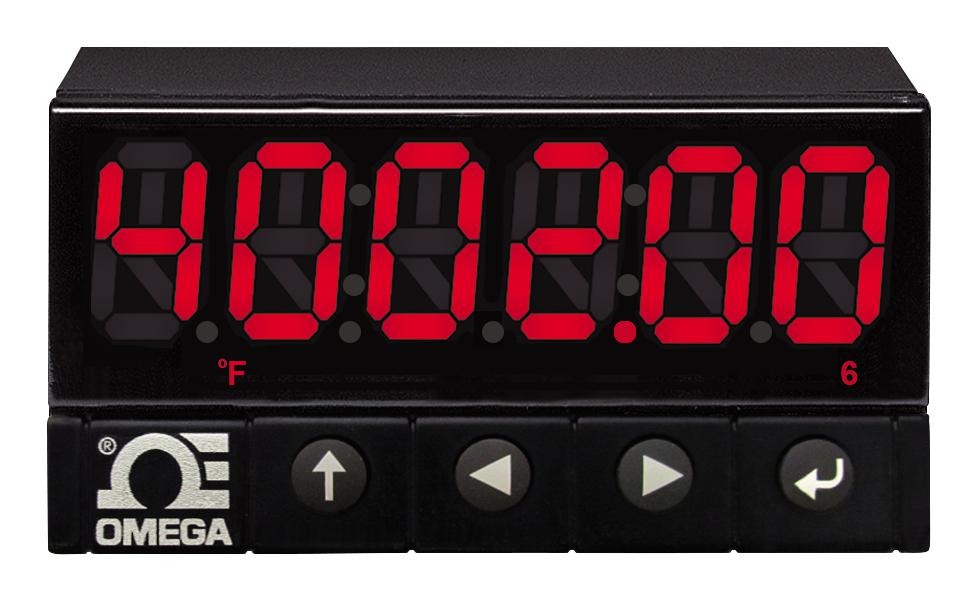

OMEGA DP8PT006 Digital Panel Meter
The PLATINUM Series digital panel meters are versatile microprocessor-based devices designed for precise process measurement. They support inputs for thermocouples, RTDs, thermistors, and process voltage/current with automatic configuration. Featuring bright 3-color LED displays, customizable alarms, and serial or Ethernet communication options, these meters are suitable for industrial environments. Models vary in size and functionalities, including relays and isolated analog outputs, with rugged IP65 or NEMA rated front bezels, ensuring durability and functionality across diverse process control applications.
OMEGA DP8PT006 Digital Panel Meter Specifications:
- Input Types: Thermocouple, RTD, thermistor, analog voltage, analog current, strain
- Process Voltage Input Range: -100 to 100 mV, -1 to 1 V, -10 to 10 V (scalable)
- Current Input Range: 4 to 20 mA, 0 to 24 mA (scalable)
- Thermocouple Types: J, K, T, E, R, S, B, C, N
- RTD Types: 100, 500, 1000 Ω (2-, 3-, or 4-wire), curves 385, 392, 3916
- Thermistors: 2252 Q, 5K Q, 10K Q, temperature range -40 to 150°C
- Display: Large 3-color LED (4-digit or 6-digit options)
- Resolution: 0.1°C temperature, 10 LV process
- Sampling Rate: Up to 20 samples/sec with 24-bit ADC
- Communication: USB standard, optional Ethernet, RS232/RS485, MODBUS®, TCP/IP
- Power Supply: 90-240 Vac (standard), 12-36 Vdc (low voltage option)
- Enclosure Ratings: NEMA 4X (IP65), NEMA 1, with rugged front bezels
- Alarm Outputs: 2 relays, programmable for high/low/band triggers
- Physical Dimensions: Vary by model, e.g., DP8Pt 48x96mm, DP16Pt 48x48mm, DP32Pt 48x48mm
- Operating Conditions: 0-50°C, 90% RH, non-condensing
- Power Consumption: Approximately 4 W
- Safety Approvals: UL, cUL, CE
Buy the Omega DP8PT006 – Reliable Industrial Process Measurement Panel Meter
Experience exceptional process measurement with the Omega Digital Panel Meter series. Featuring auto configuration, bright multi-color LED displays, various input options including thermocouples and RTDs, and integrated communication interfaces, these meters are ideal for industrial environments. Choose from models with relays, isolated outputs, and rugged NEMA/IP-rated enclosures. With easy setup and robust performance, order online today and upgrade your process control systems for accurate and reliable data management.
Buy Omega DP8PT006 now and enhance your industrial process monitoring with high accuracy, versatile inputs, and reliable communication options.
Frequently Asked Questions
Where can I buy OMEGA DP8PT006?
You can click on the BUY or RFQ button to purchase DP8PT006 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP8PT006?
You can download the DP8PT006 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP8PT006?
OMEGA
