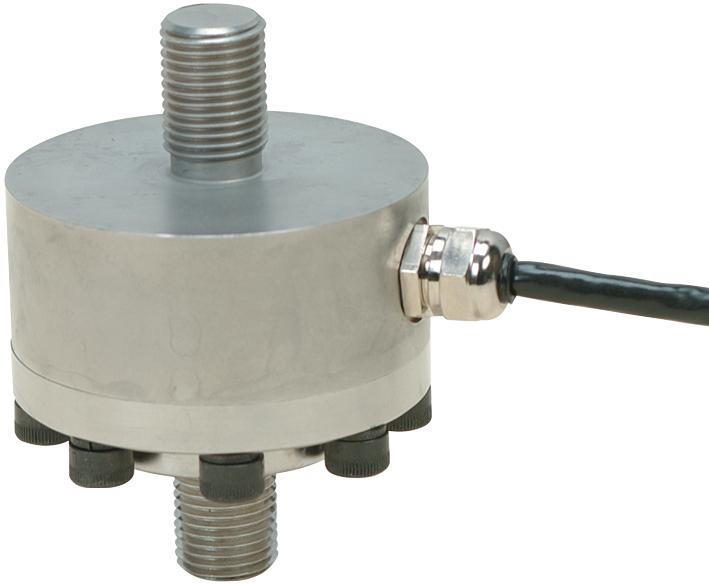

OMEGA LC2031K Miniature Load Cell
This high-accuracy miniature load cell features a 1,000 lb capacity with a cable-style dual stud mount, ideal for precise industrial weighing and confined space applications. Made from corrosion-resistant steel, it offers a hermetically sealed design for durability and long-lasting performance. The load cell includes a 5-point NIST traceable calibration with 59K ohm shunt data, providing 1.0% interchangeability for scale applications. Its compact, miniature package makes it suitable for test stands, heavy-duty environments, and precise measurement tasks with high-accuracy strain gauges and a protection class of IP65.
OMEGA LC2031K Miniature Load Cell Specifications:
- Capacity: 1,000 lb
- Mounting Style: Dual Stud
- Material: Stainless steel
- Protection Class: IP65
- Calibration: 5-Point NIST Traceable
- Shunt Data: 59K Ohm
- Linearity: +0.15% FSO
- Repeatability: +0.05% FSO
- Zero Balance: +2% FSO
- Output: 2 mV/V +0.25%
- Excitation: 10 Vdc, 15 Vdc max
- Line Resistance: 360 Q minimum
- Output Resistance: 350+10Q
- Deflection: 0.025 to 0.075 mm
- Operating Temp: -46 to 107°C (-50 to 225°F)
- Compensated Temp: 16 to 71°C (60 to 160°F)
- Overload: Safe 150%, Ultimate 300%
Buy the Newport Series LC203 Load Cell: 1000 lb Capacity
Experience reliable and accurate weight measurement with the Newport miniature load cell. Designed for harsh industrial conditions, it features corrosion-resistant steel, hermetic sealing, and high-precision strain gauges, making it perfect for test stands and confined spaces. With a 1,000 lb capacity, 5-point NIST calibration, and IP65 protection, this load cell ensures long-term stability and precision. Order online now to enhance your weighing systems with this durable, high-performance measurement device tailored for tough industrial applications.
Get Newport LC203-1K today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy OMEGA LC2031K?
You can click on the BUY or RFQ button to purchase LC2031K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC2031K?
You can download the LC2031K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC2031K?
OMEGA
