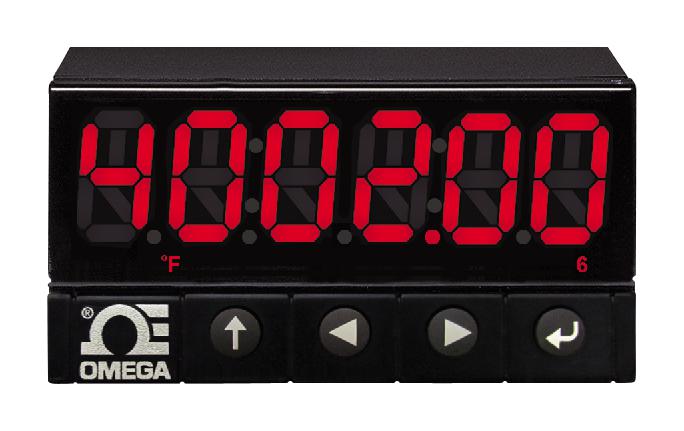

OMEGA CN8DPT305 Temperature and Process Controller
The CN8DPT305 is a versatile industrial temperature and process controller featuring universal inputs for thermocouples, RTDs, thermistors, voltage, current, and strain. It offers multiple control modes including on/off and PID with full autotune and fuzzy logic adaptive control. Equipped with a bright, three-color LED display, USB communication, optional Ethernet and serial ports, and up to six programmable outputs including relays, analog, and pulse, it provides high accuracy and reliable process measurement for demanding industrial applications. Suitable for automation, laboratory, and OEM environments, it ensures easy setup and robust performance.
OMEGA CN8DPT305 Temperature and Process Controller Specifications:
- Display: 4-digit, 9-segment LED, 45 mm (1.772 inch) square
- Input Types: thermocouples (9 types), RTDs (100/500/1000 Q), thermistors, voltage, current, strain
- Input Range: -100 to 100 mV for voltage, 4 to 20 mA for current, -270°C to 2320°C for thermocouples
- Accuracy: up to 0.03% FS for voltage/current, 0.4°C for thermocouple/RTD, 0.2°C for thermistor
- Sampling Rate: Up to 20 samples/sec with 24-bit ADC
- Control Modes: ON/OFF, PID (auto and fuzzy logic adaptive tuning)
- Ramp and Soak: Up to 99 programs, 8 segments per program, chainable for 1584 segments
- Outputs: 2 to 6 programmable outputs (relays, SSR, DC pulse, analog voltage/current), isolated options available
- Communication: USB (standard), optional Ethernet, RS232/RS485, MODBUS support
- Power Supply: 90-240 Vac or 12-36 Vdc low voltage option
- Certifications: UL, cUL, CE, NEMA 4x (IP65) front bezel, 5-year warranty
Buy the Omega Series CN Series CN8DPT305: Temperature and Process Controller
Discover the Omega CN8DPT305 temperature and process controller, designed for precision and flexibility in industrial environments. Featuring universal inputs for thermocouples, RTDs, thermistors, voltage, and current, it offers highly accurate measurements with up to 20 samples per second. With advanced control modes including PID with auto-tune and fuzzy logic, plus up to 6 programmable outputs, it caters to complex process automation needs. Equipped with USB connectivity and optional Ethernet, the CN8DPT305 simplifies setup and enhances data management, providing robust performance in factory automation, laboratories, and OEM applications.
Buy Omega CN8DPT305 now and experience unmatched reliability and performance tailored for demanding industrial temperatures and process control.
