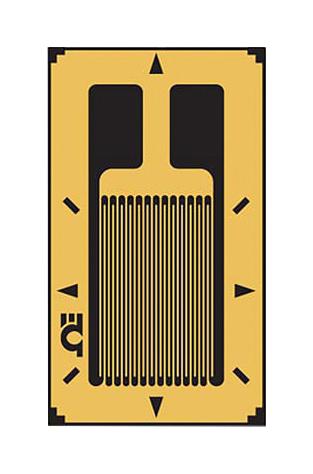

OMEGA SGD10120LY11 Linear Strain Gage
The SGD Series precision linear strain gages are designed for static and dynamic measurements, featuring a flexible, mechanically strong construction with small bending radii. Their etched constantan foil grid, sealed in polyimide film, ensures high accuracy and durability in various temperature ranges—suitable for stress analysis in industrial applications. Available with ribbon leads or solder pads, these gages are ideal for experimental stress analysis, with models tailored for steel or aluminum environments, offering broad compatibility with different bonding and installation options, including cold or hot curing adhesives.
OMEGA SGD10120LY11 Linear Strain Gage Specifications:
- Measuring grid: etched constantan foil in polyimide carrier
- Grid length options: 120 mm, 350 mm, 1000 mm, 120 mm, 350 mm, 1000 mm, 50 mm, 30 mm, 240 mm
- Grid width options: Narrow, Small, Wide, Long
- Carrier dimensions vary per model, typically around 6.5 mm to 13 mm in length and 3.1 mm to 10 mm in width
- Leads: Ribbon leads or solder pads, with terminal bondable pads available
- Temperature range: Broad, suitable for steel and aluminum applications
- Maximum permitted bridge energizing voltage: 120 Vrms to 1000 Vrms depending on model
- Material: Constantan foil, sealed in polyimide film
- Compensation options: Steel (ST), Aluminum (AL), Uncompensated (UNC)
- Ordering examples specify grid length, resistance, and termination type
- Bondable terminal pads for strain relief and heavy wire attachment
- Designed for high precision static and dynamic strain measurement
- Compatible with experimental stress analysis methodologies
Buy the Omega SGD10120LY11 – Reliable Linear Strain Gage for Industrial Stress Analysis
Discover the durability and precision of our Linear Strain Gages designed for static and dynamic stress measurements in industrial environments. Featuring flexible, sealed foil grids, these gages come with ribbon leads or solder pads and are suitable for use over broad temperature ranges. Their compact design includes bondable terminal pads for easy installation and strain relief, making them ideal for experimental stress analysis. Whether you need models for steel or aluminum, our strain gages deliver dependable performance for precision measurement tasks in manufacturing and research.
Order your Omega SGD Series precision strain gage today and enhance your stress analysis projects with reliable, high-accuracy measurement components.
Frequently Asked Questions
Where can I buy OMEGA SGD10120LY11?
You can click on the BUY or RFQ button to purchase SGD10120LY11 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SGD10120LY11?
You can download the SGD10120LY11 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SGD10120LY11?
OMEGA
