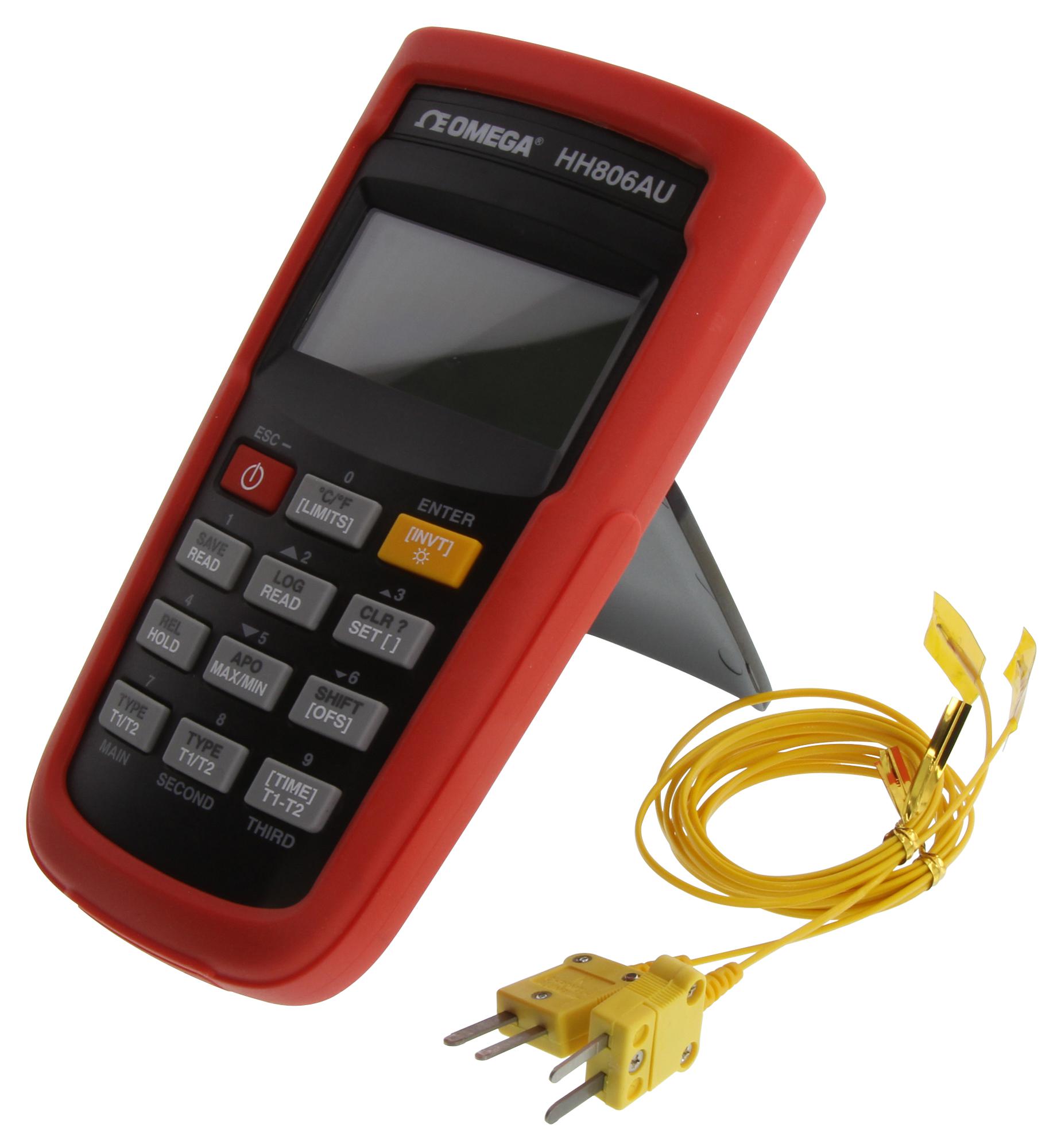

OMEGA HH806AU Dual-Channel Thermocouple Data Logger
The HH806AU is a premium dual-channel thermocouple data logger and thermometer featuring high accuracy at 0.05%. It supports seven thermocouple types including K, J, T, E, R, S, and N, and includes a triple display for clear readings of T1, T2, and current date/time. With advanced data logging, it can store up to 256 samples on demand and 16,000 in logging mode. Features include maximum, minimum, average, relative, and hold functions, auto power-off, and audible high/low alarms. It comes with two Type K thermocouples, USB interface, rubber boot, batteries, and a user manual, making it ideal for precise temperature monitoring in industrial and laboratory environments.
OMEGA HH806AU Dual-Channel Thermocouple Data Logger Specifications:
- Measurement Range: Type K: -200 to 1372°C (-328 to 2501°F), Type J: -210 to 1200°C (-346 to 2192°F), Type T: -200 to 400°C (-328 to 752°F), Type E: -220 to 1000°C (-364 to 1832°F), Type R: 0 to 1767°C (32 to 3212°F), Type S: 0 to 1767°C (32 to 3212°F), Type N: -50 to 1300°C (-58 to 2372°F)
- Accuracy: ±0.05% rdg + 0.7°C/0.8°F depending on temperature range, resolution: 0.1° to 1999°, 1° above, triple display for T1, T2, date/time, wireless capability with 900 MHz frequency for USA, 868 MHz for Europe, data logging of up to 256 samples on demand, 16,000 in logging mode, extended measurement functions including MAX/MIN/AVG/REL/HOLD, auto power-off, audible alarms, power source: 4 AAA batteries, dimensions: 160 H x 83 W x 38 mm D, operating temperature: 0 to 50°C.
- Physical: Dimensions: 160 H x 83 W x 38 mm D, weight not specified, rubber boot included, input connection via Type K thermocouple, digital triple display, battery operated, USB interface for PC data transfer, optional AC power supply, wireless communication with USB receiver, power consumption: 5-20 mA.
- Environmental: Operating range 0 to 50°C, storage temperature -20 to 60°C, relative humidity up to 80% RH, meets industrial standards, certified for accuracy, includes NIST traceable calibration certificate (no points), rugged design for industrial environments
Buy the High-Accuracy Series HH806AU Thermocouple Data Logger: HH806AU
Purchase the HH806AU dual-channel thermocouple data logger online today and enjoy high-performance temperature measurement with 0.05% accuracy. Featuring support for seven thermocouple types, extensive data storage up to 16,000 samples, and a user-friendly triple display, it is suitable for industrial, laboratory, and process monitoring applications. The device includes a USB interface, power adapter, rugged rubber boot, and calibration certificate—guaranteeing reliability and precise results. Order now to enhance your temperature data collection and analysis with this versatile, high-accuracy instrument designed for demanding environments.
Get HH806AU today—built for precision, extensive data logging, and reliable industrial temperature measurement.
Frequently Asked Questions
Where can I buy OMEGA HH806AU?
You can click on the BUY or RFQ button to purchase HH806AU from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HH806AU?
You can download the HH806AU datasheet or visit the OMEGA website for support.
Who is the manufacturer of HH806AU?
OMEGA
