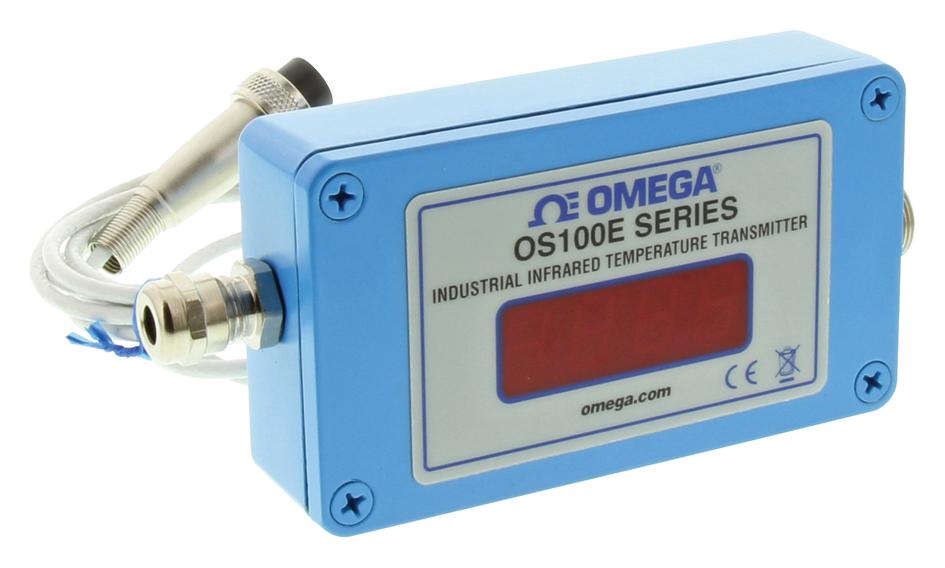

OMEGA OS102EMV Infrared Temperature Sensor
The OS100E Series miniature infrared sensors measure temperatures from -18 to 538°C (0 to 1000°F) with high accuracy, repeatability, and adjustable emissivity. Encased in rugged NEMA 4 (IP65) aluminum housings, these sensors feature optional LED displays, remote sensor heads, and various analog and thermocouple outputs. They are suitable for confined or harsh environments, offering configurable alarm settings, PC interface, and water cooling options. Easy to integrate into industrial systems, these sensors provide reliable, fast temperature measurements for industrial and manufacturing applications.
OMEGA OS102EMV Infrared Temperature Sensor Specifications:
- Temperature Range: -18 to 538°C (0 to 1000°F)
- Accuracy @ 22°C Ambient: +2% rdg or 2.2°C (4°F), whichever is greater
- Optical Field of View: 6:1
- Sensor Head Cable Extension: Up to 15 m (50’)
- Repeatability: +1% rdg
- Spectral Response: 5 to 14 microns
- Response Time: 100 ms
- Emissivity Range: 0.1 to 1.00, adjustable
- Display: 4-digit LED, switchable between °C and °F
- Operating Temperature - Main Transmitter: 0 to 50°C
- Sensor Head Operating Temp: 0 to 70°C (or 85°C for -HT models), with water cooling options
- Power Supply: 12 to 24 Vdc @ 150 mA
- Housing: NEMA 4 (IP65), aluminum
- Outputs: 1 mV/°C or °F, 0-5 Vdc, 0-10 Vdc, 4-20 mA, Type K thermocouple
- PC Interface: RS232, 2-way
- Alarm: Adjustable setpoint with deadband
- Dimensions (Sensor Head): 25.4 mm OD x 63.5 mm L
Buy the Omega OS100E – Reliable IR Temperature Sensors for Industrial Applications
Experience reliable and accurate temperature measurement with the Omega OS102E-MV infrared sensor. Designed for industrial applications, this compact, rugged sensor offers adjustable emissivity, multiple analog and thermocouple outputs, and an easy-to-read LED display with °C/°F switchability. Its NEMA 4 (IP65) aluminum enclosure ensures durability in demanding environments. With optional high-temperature sensor heads, remote cable extensions, and PC interface, this sensor is ideal for confined spaces and harsh conditions, providing fast, dependable readings for process control and monitoring.
Get Omega OS102E-MV today—built for precision and long-lasting durability in harsh environments.
