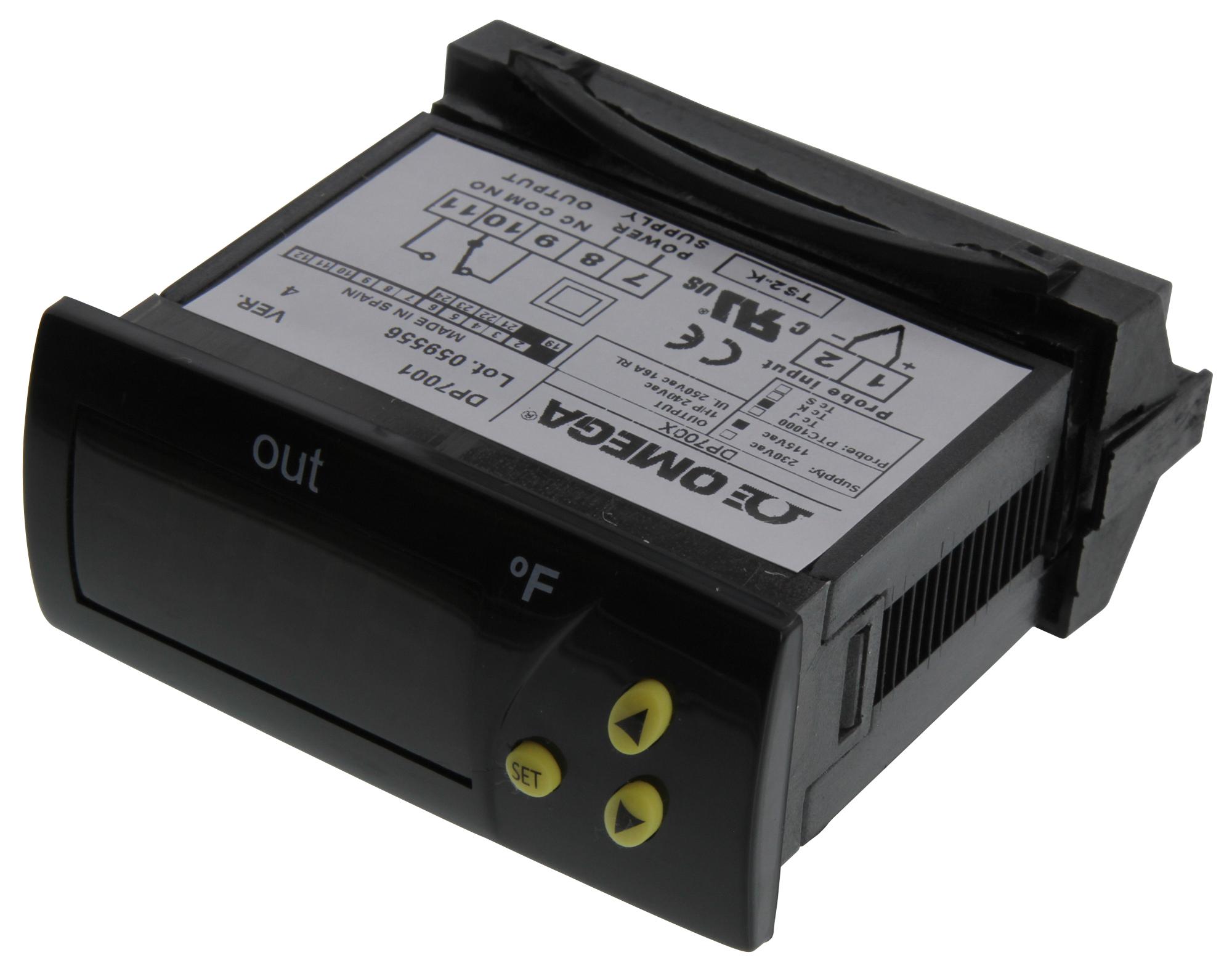

OMEGA DP7001 Temperature Meter
This temperature meter features a bright red, three-digit LED display and includes an internal audible buzzer. It offers either simple on/off control or alarm functionality and is equipped with a 16A relay output. The device is housed in a NEMA 4X (IP64) rated front panel for durability and reliable operation. It supports thermocouple inputs of J or K types with a measurement range of 0 to 999°C (32 to 999°F). Suitable for industrial applications like chillers, ovens, and environmental chambers, it operates from 115, 230, 12, or 24 Vac/Vde power sources, offers adjustable update rates, and features password protection and error messaging for secure, user-friendly operation.
OMEGA DP7001 Temperature Meter Specifications:
- Probe Range: Thermocouple J: 0 to 999°C (32 to 999°F)
- Thermocouple K: 0 to 999°C (32 to 999°F)
- Inputs: Type J or K thermocouple
- Output: 16 A SPDT relay @ 240 Vac resistive
- Power Requirement: 115 Vac, 230 Vac, 12 Vac/Vde, or 24 Vac/Vde
- Power Consumption: 4 VA
- Accuracy: +1% FS
- Display: Three 12.7 mm red digits, adjustable update rate
- Resolution: 1°
- Operating Temperature: 0 to 70°C (32 to 158°F)
- Storage Temperature: -20 to 80°C (-4 to 176°F)
- Front-Panel Rating: NEMA 4X (IP64)
- Dimensions: 75 x 29 mm (2.95 x 1.15 inches)
Buy the Industrial Sensors 7001 – Reliable Temperature Control for Industrial Applications
Purchase the reliable temperature meter with LED display, internal buzzer, and relay output online now. Ideal for industrial environments requiring precise temperature regulation and alarm indications. With NEMA 4X protection, it withstands harsh conditions. Supports J or K thermocouple inputs with a measurement range up to 999°C. Easy to install with compact dimensions, it offers adjustable update rates and secure password protection. Ensure your processes are safe and efficient by ordering this robust temperature control device today.
Order your Industrial Sensors DP7001 temperature meter with alarm today and ensure accurate, reliable temperature monitoring in your industrial projects.
Frequently Asked Questions
Where can I buy OMEGA DP7001?
You can click on the BUY or RFQ button to purchase DP7001 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part DP7001?
You can download the DP7001 datasheet or visit the OMEGA website for support.
Who is the manufacturer of DP7001?
OMEGA
