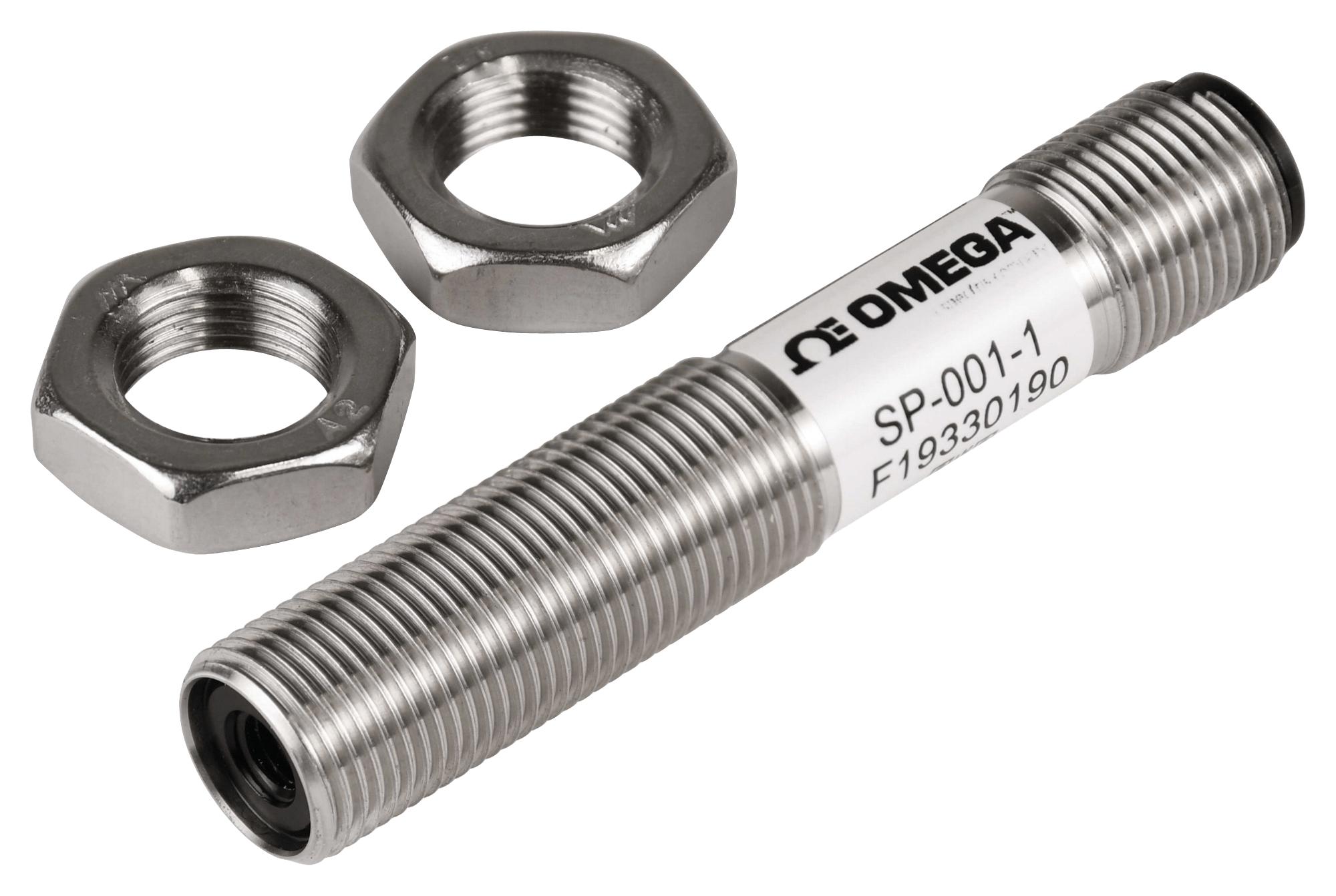

OMEGA SP0010 Infrared Temperature Sensor
The Omega Smart IR Temperature Probe is an ultra-miniature, non-contact infrared sensor designed for industrial use. It measures surface temperatures from -70 to 380°C (-94 to 716°F) with high accuracy, suitable for materials like paper, plastics, rubber, and painted metals. Packaged in a rugged stainless steel housing with IP67 rating, it features configurable optical field of view (6:1 or 10:1), built-in data logging, and intelligent IoT connectivity through Smart Core electronics. Perfect for precise, safe, and clean temperature measurements in demanding environments.
OMEGA SP0010 Infrared Temperature Sensor Specifications:
- Temperature Range: -70 to 380°C
- Accuracy @ Ambient 0 to 50°C: 1°C or 1% of reading
- Accuracy Over Entire Range: 4°C or 3% of reading
- Repeatability: 1°C or 1% of reading
- Response Time: 1 second
- Spectral Response: 5.5 to 14 microns
- Supply Power: 3.3 VDC, 0.05 W max
- Field of View: 6:1 or 10:1 depending on model
- Construction: Stainless Steel
- Sensor Dimensions: 12 mm OD x 67 mm L
- Mounting Dimensions: 12 mm OD x 33.5 mm L
- Weight: 35 g
- Environmental Rating: NEMA 6, IP67
- Operating Temperature: -40 to 85°C
- Vibration: 10 Gs from 10 Hz to 500 Hz
- Certifications: CE, EMC 2014/30/EU, LVD 2014/35/EU
Buy the Omega Series Smart IR Temperature Probe: SP0010
Order the Omega Infrared Temperature Sensor SP0010 online today to enjoy fast delivery and reliable, high-accuracy non-contact temperature measurement in challenging industrial environments. Its compact stainless steel design ensures durability, while configurable optics and data logging features make it ideal for industries requiring precise thermal monitoring, including plastics, rubber, painted surfaces, and organic materials. Easy to install, programmable, and compliant with CE and RoHS standards, this sensor guarantees safe, clean, and efficient temperature measurements throughout your process.
Get Omega Smart IR Temperature Probe SP0010 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA SP0010?
You can click on the BUY or RFQ button to purchase SP0010 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SP0010?
You can download the SP0010 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SP0010?
OMEGA
