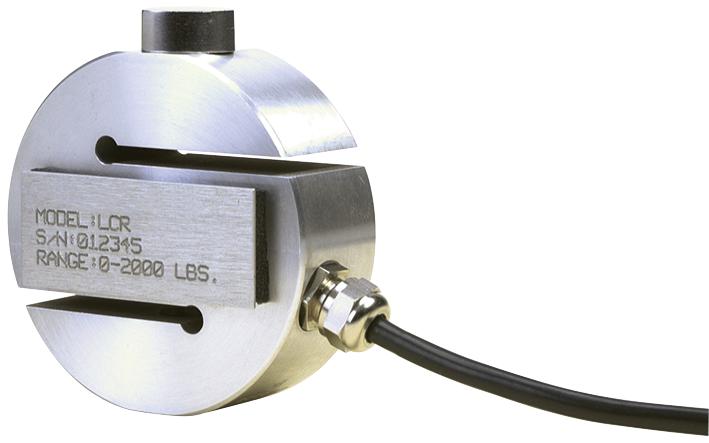

OMEGA LCR2K Rugged Force Load Cell
The LCR Series S-Beam Load Cells are designed for industrial applications, offering high accuracy and rugged construction with aluminum for up to 1000 Ib and stainless steel for higher ranges. They feature 5-point tension calibration, ±0.03% linearity, and operate within -18°C to 71°C. These load cells have a 3 mV/V output, 150% safe overload, and include load buttons and rod ends. Suitable for tension measurement, they ensure precise readings with minimal hysteresis and creep, making them ideal for industrial force measurement and testing.
OMEGA LCR2K Rugged Force Load Cell Specifications:
- Excitation: 10 Vdc, 15 V max
- Output: 3 mV/V ±0.25%
- Calibration: 5-point in tension (0%, 50%, 100%, 50%, 0%)
- Linearity: +0.03%
- Hysteresis: +0.02%
- Repeatability: +0.01%
- Creep (20 min): +0.03%
- Operating Temperature: -18°C to 71°C (0°F to 150°F)
- Compensated Temperature: 17°C to 71°C (60°F to 160°F)
- Zero Thermal Effect: +0.0027% FS/°C
- Span Thermal Effect: +0.0015% rdg/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Bridge Resistance: 350 Q nominal
- Material: Aluminum for up to 1000 lb, 17-4 PH stainless steel for >1000 lb
- Electrical Connection: 6 m (20') cable
- Wiring: Red (+) Excitation, Black (-) Excitation, Green (+) Output, White (-) Output
- Protection Level: IP55
Buy the Newport LCR2K – Reliable Force Measurement for Industrial Applications
Enhance your force measurement tasks with the Newport LCR2K S-Beam Load Cell, designed for durability and high accuracy in industrial environments. Featuring robust aluminum and stainless steel construction, it provides reliable tension measurement for a wide range of applications up to 2000 lb. With precision calibration and minimal thermal effects, this load cell delivers consistent, accurate readings essential for testing, force measurement, and automation projects. Order online now to secure a dependable solution for your industrial needs.
Order your Newport Series LCR2K rugged S-Beam load cell today and ensure precise force measurement with dependable industrial quality.
