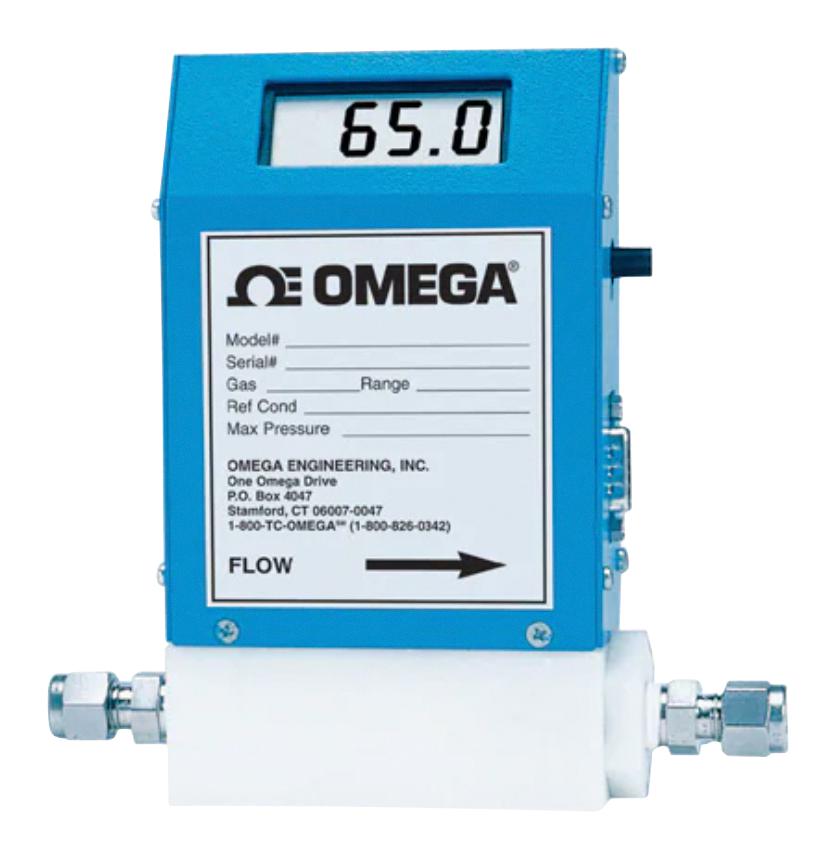

OMEGA FMAA2310 Mass Flow Meter
The FMA-A2000 Series mass flow meters and controllers from Omega provide high-performance, versatile measurement of gas flow rates using advanced thermal technology. They feature a compact design with a 1% accuracy, rapid 5-second response time, and a turndown ratio of 100:1. Ideal for precise gas flow control, these units are compatible with a broad range of non-corrosive gases and include linear 0-5 V and 4-20 mA outputs. Options include models with LCD displays for easy monitoring, suitable for applications requiring accurate flow measurement from 0 to 100 SLM at ambient temperatures of 0-50°C.
OMEGA FMAA2310 Mass Flow Meter Specifications:
- Accuracy: +1% of full scale including linearity
- Repeatability: +0.15% full scale or better
- Turndown Ratio: 100:1
- Response Time: 5 seconds
- Gas Ambient Temperature: 0 to 50°C (32 to 122°F)
- Temperature Coefficient: 0.05% full scale per 1°C or better
- Pressure Coefficient: 0.01% full scale per psi or better
- Maximum Gas Pressure: 250 psig (Polyacetal), 500 psig (316 SS)
- Leak Integrity: 1 x10^-8 cc/min of He or better
- Wetted Parts: Polyacetal, FKM O-rings, optional 316 SS with FKM
- Connections: 4 FNPT standard, 4" compression fitting (stainless steel models)
- Input Power: 24 Vdc @ 150 mA; 115 Vac or 220 Vac with adaptor
- Output Signals: 0-5 Vdc, 4-20 mA, 500 Ω loop resistance
- Dimensions and weight vary; standard model weighs approx. 1.25 kg (2.75 Ib)
Buy the Omega Series FMA-A2000 Gas Flow: FMA-A2310
Purchase the Omega FMA-A2310 mass flow meter today online. Designed for accuracy and reliability, it provides precise measurement of gas flow rates from 0 to 45 SLM. Featuring thermal technology, quick response time of 5 seconds, and compatibility with various non-corrosive gases, this device ensures optimal performance in industrial applications. Its compact design, linear outputs, and optional LCD display make it easy to monitor and control gas flow, boosting your process efficiency and quality assurance.
Get Omega FMA-A2310 today—built for precise gas measurement and durable industrial use.
