OMEGA SCGGK3036 Thermocouple

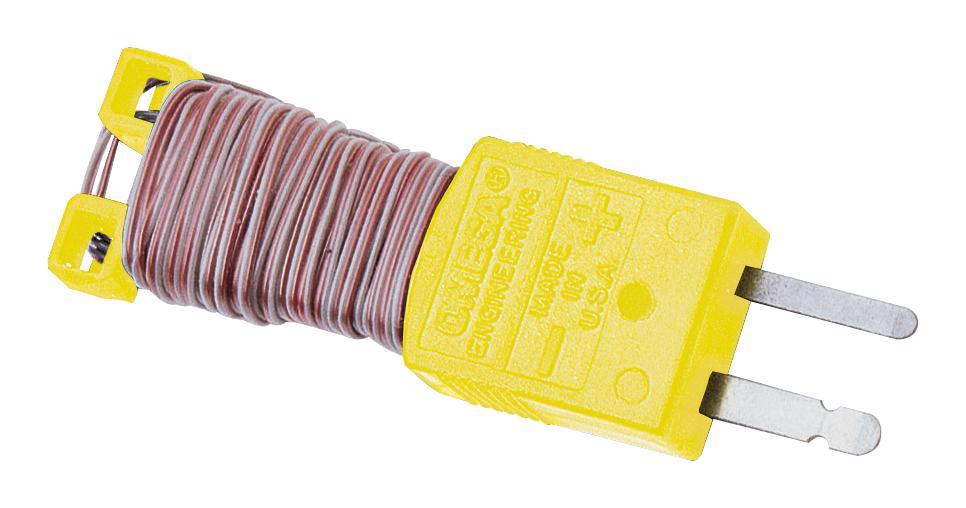

This pack includes five Type K miniature SMP spool caddy thermocouples, each equipped with a 1-meter length of 30 AWG glass braid insulated wire. The glass braid insulation can withstand temperatures up to 480°C (900°F). The connector body and spool caddy are rated for a maximum service temperature of 220°C. The spool caddy offers a convenient storage solution for thermocouples, ensuring organized and accessible usage.
OMEGA SCGGK3036 Thermocouple Specifications:
- Thermocouple Type: K
- Configuration: Miniature SMP spool caddy
- Number of units: 5
- Wire Material: Glass Braid Insulation
- Wire Diameter: 30 AWG (0.25 mm)
- Wire Length: 1 meter (approximate)
- Maximum Service Temp: 480°C (900°F)
- Connector Body: Rated for 220°C (425°F)
- Insulation: Glass Braid
- Model Number: SCGGK3036
Buy the Buy Omega Thermocouples Part Number SCGGK3036 Online
Purchase the Omega Series SCGGK3036 miniature SMP spool caddy thermocouples online to benefit from precision temperature measurement in high-temperature environments. These thermocouples feature durable glass braid insulation capable of handling up to 480°C, ideal for laboratory and industrial applications. The compact spool caddy design provides organized storage, quick access, and easy deployment. With 1 meter of 30 AWG wire, these thermocouples deliver accurate readings, reliable performance, and convenient handling, ensuring your temperature measurement tasks are efficient and accurate.
Order your Omega Series SCGGK3036 miniature SMP spool caddy thermocouples today and ensure reliable high-temperature measurement in your industrial applications.
Frequently Asked Questions
Where can I buy OMEGA SCGGK3036?
You can click on the BUY or RFQ button to purchase SCGGK3036 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part SCGGK3036?
You can download the SCGGK3036 datasheet or visit the OMEGA website for support.
Who is the manufacturer of SCGGK3036?
OMEGA
