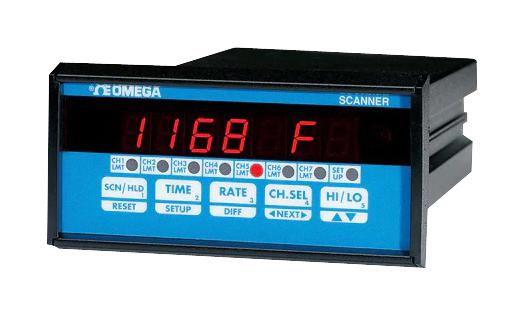

OMEGA DPS3204TC1 Thermocouple Process Scanner
The DPS3204 thermocouple process scanner offers four independently programmable channels, each capable of accepting different input types. Designed for process monitoring, it features advanced scanning modes, precise voltage and temperature measurement, and optional alarms. Suitable for industrial temperature and process control applications, it displays temperature in °C or °F, provides flexible scaling, and ensures high accuracy with 0.5% reading. The robust design includes a 4.4-inch depth, a standard 4 DIN cutout, and built-in alarms, making it ideal for precise, multi-channel process measurement and automation tasks.
OMEGA DPS3204TC1 Thermocouple Process Scanner Specifications:
- Input Types: Thermocouple types J, K, T, E; RTD 385 and 392 curves; process voltage/current signals
- Accuracy: 0.5% reading; J, K, T, E: 1°C; S: 2°C; R, B: 3°C
- Resolution: 0.1°C/°F for thermistor; 0.025% FS for other signals
- Scale Range: 1 to 30,000
- Display: 4-digit with 3 alphanumeric characters, height approximately 14 mm
- Scan Rate: Fixed at 2 channels/sec
- Channel display time: 1 to 999 seconds per channel
- Power Supply: 120 Vac 60Hz, optional 240 Vac 50Hz, or 9-15 Vdc
- Mounting: 4 DIN cutout (45 x 92 mm), dimensions 57 H x 112 W x 178 mm D
- Weight: 1.2 kg (2.8 lbs)
- Outputs: 7 relays, 4 relays, 4-20 mA, 0-10 V output options
- Alarms: Programmable mechanical relays, 1 A @ 28 Vdc or 0.5 A @ 120 Vac
- Additional features: Buzzer alarm, configurable deadband, independent scaling, operating modes
Buy the Buy Omega DPS3204 Thermocouple Process Scanner Part Number DPS3204TC1 Online
Order the Omega DPS3204 thermocouple process scanner online today to ensure precise temperature measurement and process control in your industrial applications. Featuring four independently programmable channels, scalable displays, and optional alarms, it’s ideal for monitoring multiple inputs simultaneously. Its durable 4 DIN mounting and comprehensive features enable reliable performance in demanding environments. Whether you need process voltage, current, or thermocouple inputs, this versatile scanner provides accurate, real-time data required for effective automation and safety monitoring, making it a valuable addition to your control system.
Get Omega DPS3204 thermocouple process scanner today—designed for high-precision industrial temperature monitoring and multi-channel process automation.
