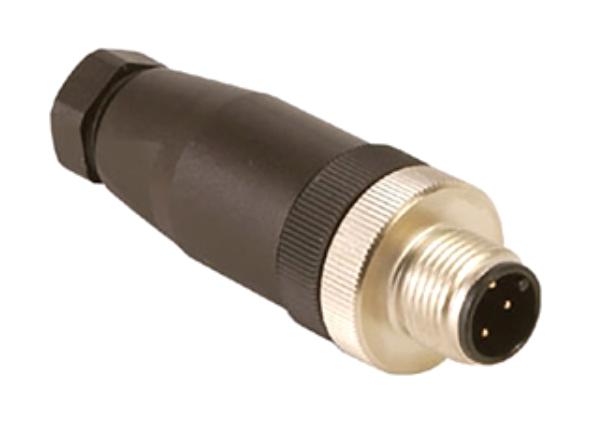

OMEGA M125BSFFM Thermocouple Connectors
The M12-FM Series field mount thermocouple connectors provide reliable connections for temperature sensing applications. Designed with screw-type connections, these connectors accommodate #18 to #24 AWG conductors and cable diameters of 4 to 6 mm. Available in straight or right-angled configurations, they maintain high measurement accuracy even when exposed to temperature gradients, thanks to their compensated thermocouple design. Rated IP67, with a maximum temperature of 85°C, these connectors ensure durability and precise thermal measurement in industrial environments, suitable for various thermocouple types including K, J, T, and E.
OMEGA M125BSFFM Thermocouple Connectors Specifications:
- Connection Type: Screw-Interlock
- Cable Diameter: 4-6 mm (0.16-0.24 inches)
- Conductors: #18 to #24 AWG
- Maximum Temperature: 85°C (185°F)
- Ingress Protection: IP67 Rated
- Connector Styles: Straight and Right Angled
- Material: Brass or Copper Pins and Sockets
- Thermocouple Types Supported: K, J, T, E
- Temperature Gradient Resistance: Maintains accuracy under exposure
- Compatible with thermocouple extension cables
Buy the Omega Series M12 Thermocouple Connectors: M125BSFFM
Purchase the Omega M125BSFFM thermocouple connectors online today for secure, accurate temperature measurement solutions. These durable connectors feature screw-type interlocks for easy installation and excellent reliability, rated IP67 for industrial environments. Suitable for #18-24 AWG conductors and cable diameters of 4 to 6 mm, they support various thermocouple types including K, J, T, and E, withstanding temperature gradients and exposure. Ensure precise thermal sensing with these high-quality, field-mounting connectors—order now for quick delivery!
Buy Omega M125BSFFM now and experience unmatched reliability and performance in industrial thermocouple connections.
Frequently Asked Questions
Where can I buy OMEGA M125BSFFM?
You can click on the BUY or RFQ button to purchase M125BSFFM from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part M125BSFFM?
You can download the M125BSFFM datasheet or visit the OMEGA website for support.
Who is the manufacturer of M125BSFFM?
OMEGA
