OMEGA SA2CRTD3100A40 Surface Temperature Sensor
The flexible surface-mounted RTD sensors are designed for easy attachment to any shape or surface, featuring a Class B platinum element with a temperature range of -50 to 200°C. Equipped with adhesive backing for quick installation, these sensors come in various configurations, including 4-wire options with PFA-insulated cables. They are available in standard lengths of 1, 2, and 3 meters, with optional extended cable lengths. Suitable for precise temperature measurement in industrial and process applications, these sensors combine durability with easy integration to ensure reliable performance.
OMEGA SA2CRTD3100A40 Surface Temperature Sensor Specifications:
- Temperature Range: -50 to 200°C
- Sensor Type: PT100, Class B DIN Platinum
- Configuration: 4-wire standard
- Cable Insulation: PFA
- Cable Lengths: 1m, 2m, 3m (custom length options available)
- Thickness: 6.4 mm (0.25 inches) max
- Lead Material: Nickel-plated copper, stranded, #26 AWG
- Mounting: Adhesive backing for easy surface attachment
- Model Variants: Different resistance values and connector options
- Operating Temperature: Suitable for industrial environments
- Cable Jacket: PFA insulated and jacketed
- Resistance: 100 Ω

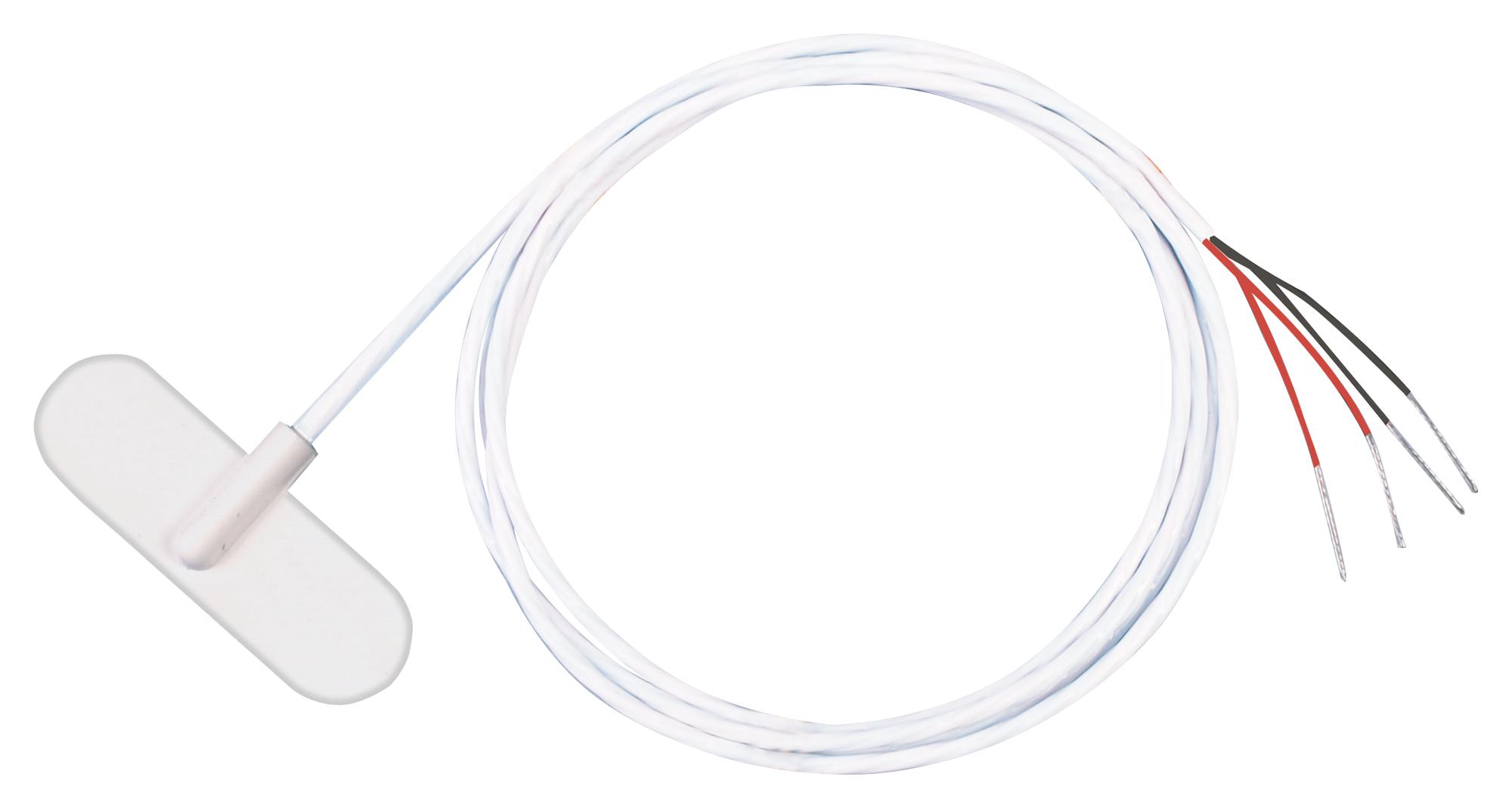

- Item shown: SA2C-RTD series
Buy the Omega SA2C-RTD U–2013 Reliable Temperature Sensors for Industrial Applications
Get your Omega surface temperature sensor now online to ensure precise temperature measurement for industrial or process applications. With easy surface mounting, PFA insulated cables, and 4-wire configuration, this sensor provides high accuracy from -50°C to 200°C. Available in standard lengths of 1, 2, and 3 meters with options for custom cable extensions. Reliable and durable, it’s ideal for industrial environments requiring sensor robustness and rapid installation. Purchase today for quick delivery and improved process control.
Order your Omega Series SA2C-RTD temperature sensor today and enhance your industrial temperature monitoring with dependable, easy-to-mount surface sensors.
