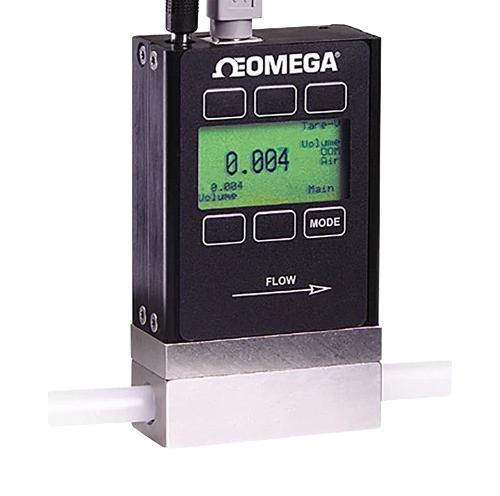

OMEGA FMA1619AI Gas Flow Meter
The FMA-1600A series mass and volumetric flow meters by Omega operate on the principle of differential pressure within a laminar flow element to determine gas flow rates. Equipped with a laminar flow element and dedicated temperature and pressure sensors, they accurately measure volumetric flow, converting it to standard conditions for precise mass flow reports in units like SCFM or SLM. These devices feature a maximum flow rate of 500 SCCM, RS232 communication, 130+ gas calibrations, and a built-in display. They require no warm-up time or straight pipe runs, offering a turndown ratio of 200:1, making them ideal for clean-gas applications in industrial settings.
OMEGA FMA1619AI Gas Flow Meter Specifications:
- Accuracy: +0.8% of rdg + 0.2% FS
- Repeatability: +0.2%
- Turndown Ratio: 200:1
- Response Time: 10 ms typical, adjustable via RS232
- Output: 0 to 5 V standard, optional 4-20 mA
- Operating Temperature: -10 to 50°C (14 to 122°F)
- Zero Shift: 0.02% FS/°C/atm
- Span: 0.02% FS/°C/atm
- Humidity Range: 0 to 100% non-condensing
- Maximum Pressure: 145 psig
- Flow Range: 0 to 1 LPM (130+ gases calibration) to 500 SCCM
- Supply Voltage: 7 to 30 Vdc
- Cable Connection: 8-pin mini DIN
- Wetted Parts: 302 and 303 stainless steel, FKM, silicone, glass, PPS, epoxy, aluminum, gold, brass, stainless steel
- Physical Dimensions: Port size 10-32 UNF or FNPT, height, length, depth vary according to model
- Calibration: Factory calibrated at ambient 25°C, air at specified pressures
Buy the Omega FMA-1600A – Reliable Gas Flow Meter for Industrial Applications
Purchase the Omega FMA-1600A series gas flow meter online today to experience precise and reliable gas flow measurement. Its advanced laminar flow principle offers high accuracy and fast response times, ideal for clean gas applications like bioreactors, chromatography, or fuel gases. Equipped with RS232 communication, up to 130+ gas calibrations, and no need for straight pipe runs, it simplifies installation while delivering consistent performance. Enjoy the convenience of factory calibration, a robust stainless steel wetted parts design, and the durability required for demanding industrial environments. Order now to secure dependable performance for your gas measurement needs.
Order your Omega FMA-1600A series gas flow meter today and ensure precise, reliable measurement of your clean gases—perfect for industrial applications.
