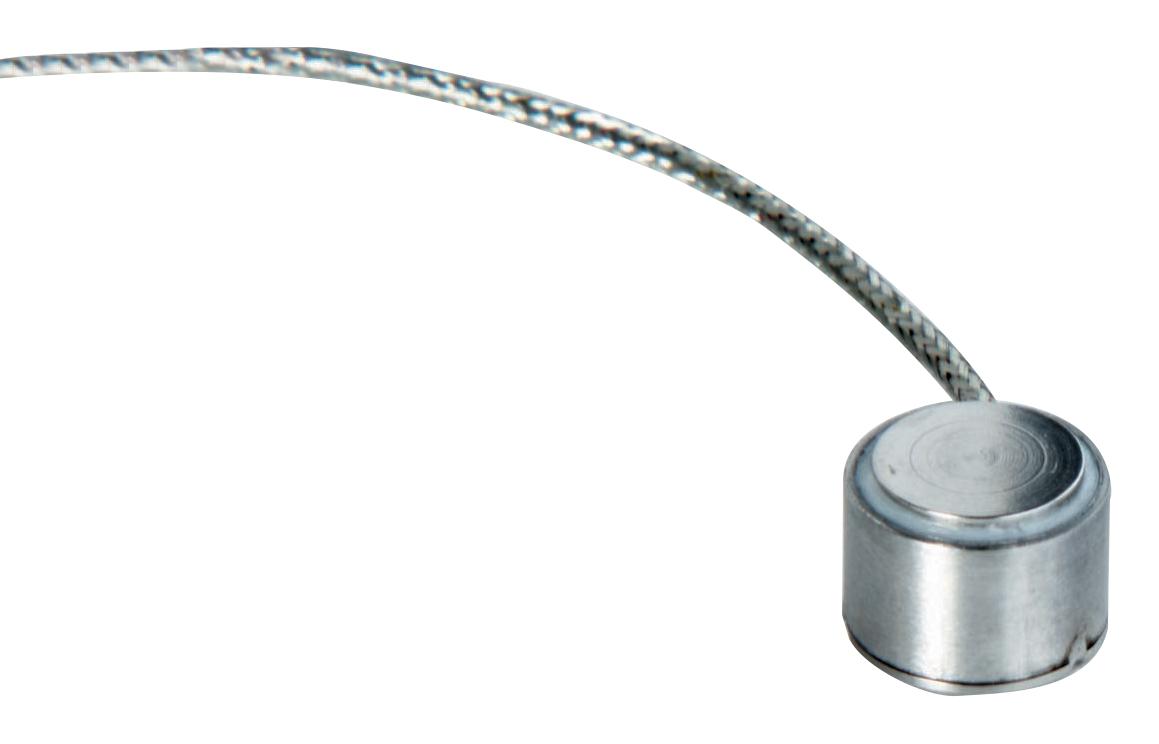

OMEGA LC307100K High-Capacity Top Hat Load Cell
The LC307 series top hat load cells are compact, high-capacity compression sensors made of all stainless steel, ideal for limited space applications up to 100,000 Ib. They feature high-performance strain gages ensuring superior linearity and stability. Equipped with temperature compensation via a miniature circuit board in the cable, these load cells provide accurate measurements over a wide temperature range. Designed for smooth, flat surface mounting, they are suitable for diverse industrial weighing and test applications with rugged and reliable construction.
OMEGA LC307100K High-Capacity Top Hat Load Cell Specifications:
- Excitation: 5 Vdc
- Output: 1.5 mV/V nominal
- Accuracy: 0.75% FS BFSL
- Zero Balance: +2% FSO
- Operating Temp Range: -54 to 121°C (-65 to 250°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Thermal Effects: Span +0.018% rdg/°C, Zero +0.018% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Bridge Resistance: ≥350 ohms
- Protection Class: IP54
- Cable Length: 1.5 m with compensation board
- Full Scale Deflection: 0.001 to 0.003 inches
- Dimensions vary by capacity, from 6.9 mm (0.27 inch) to 50.8 mm (2.00 inch)
Buy the Hike Series LC307 High-Capacity Load Cell: LC307100K
Order the Hike Series LC307 high-capacity stainless steel top hat load cell online today to get precise, reliable measurement solutions for limited space applications. With a rugged design and temperature compensation, these load cells are ideal for industrial and testing environments up to 100,000 Ib. Featuring easy installation, high accuracy, and protection against harsh conditions, they ensure consistent performance. Purchase now and enhance your weighing systems with superior stability, durability, and seamless integration for diverse measurement needs.
Buy Hike Series LC307100K load cell now and experience unmatched reliability and performance for high-capacity industrial weighing and testing.
Frequently Asked Questions
Where can I buy OMEGA LC307100K?
You can click on the BUY or RFQ button to purchase LC307100K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LC307100K?
You can download the LC307100K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LC307100K?
OMEGA
