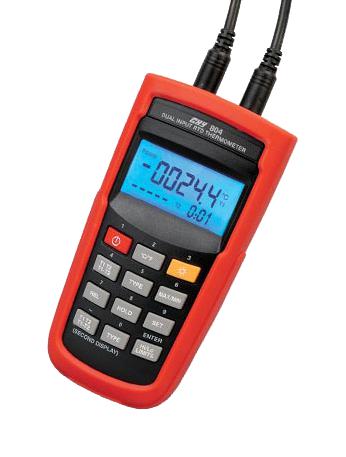

OMEGA HH804 RTD Thermometer
This high-precision RTD thermometer is designed for accurate temperature measurements using a 100 ohm platinum RTD sensor. It features three selectable temperature coefficient curves, high reading accuracy of 0.05%, and functions like MAX/MIN, average, relative, and hold. The device has an audible high/low limit alarm and dual temperature displays for easy comparison. The kit includes the thermometer, a protective rubber boot, a DIN connector, and an operator's manual. Suitable for industrial and laboratory environments, it supports real-time data logging via USB or wireless communication options, with calibration certificates for traceability.
OMEGA HH804 RTD Thermometer Specifications:
- Measurement Range: 0.00385 (100 Ω): -200.0 to 800.0°C (-328.0 to 1472.0°F)
- Alternate Range: 0.003916/0.003926 (100 Ω): -200.0 to 630.0°C (-328.0 to 1166.0°F)
- Accuracy: ±(0.05% reading + 0.2°C at 23°C)
- Input Connection: 4-pin mini DIN connector
- Display: Dual 4% digit with time
- Sensor: Pt100 RTD, 3- or 4-wire configuration
- Calibration: NIST traceable, certificate included
- Operating Environment: 0 to 50°C at <70% RH
- Power Supply: 4 AAA batteries, optional USB or wireless communication
- Wireless Range: Up to 25 meters (75 feet)
- Additional Features: MAX/MIN/AVG/REL/HOLD measurement functions, audible high/low limits alarm, dual temperature displays
- Software: Optional Windows® software for data logging
- Dimensions: Compact design suitable for industrial applications
- Accessories: Protective rubber boot, DIN connector, operator’s manual
Buy the Omega HH804 – Reliable RTD Thermometer for Industrial Applications
Order the Omega HH804 high-accuracy RTD thermometer online today for precise temperature measurement in industrial, laboratory, and manufacturing environments. Featuring dual displays, adjustable curves, and wireless data logging, it provides reliable readings and easy connectivity. The kit includes a robust protective boot, DIN connector, calibration certificate, and operator’s manual. Perfect for monitoring critical processes, ensuring compliance, and enhancing productivity. Purchase online to enjoy fast shipping, dedicated support, and extended warranty options for peace of mind.
Get Omega HH804 today—built for precision and long-lasting durability in your temperature measurement needs.
Frequently Asked Questions
Where can I buy OMEGA HH804?
You can click on the BUY or RFQ button to purchase HH804 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HH804?
You can download the HH804 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HH804?
OMEGA
