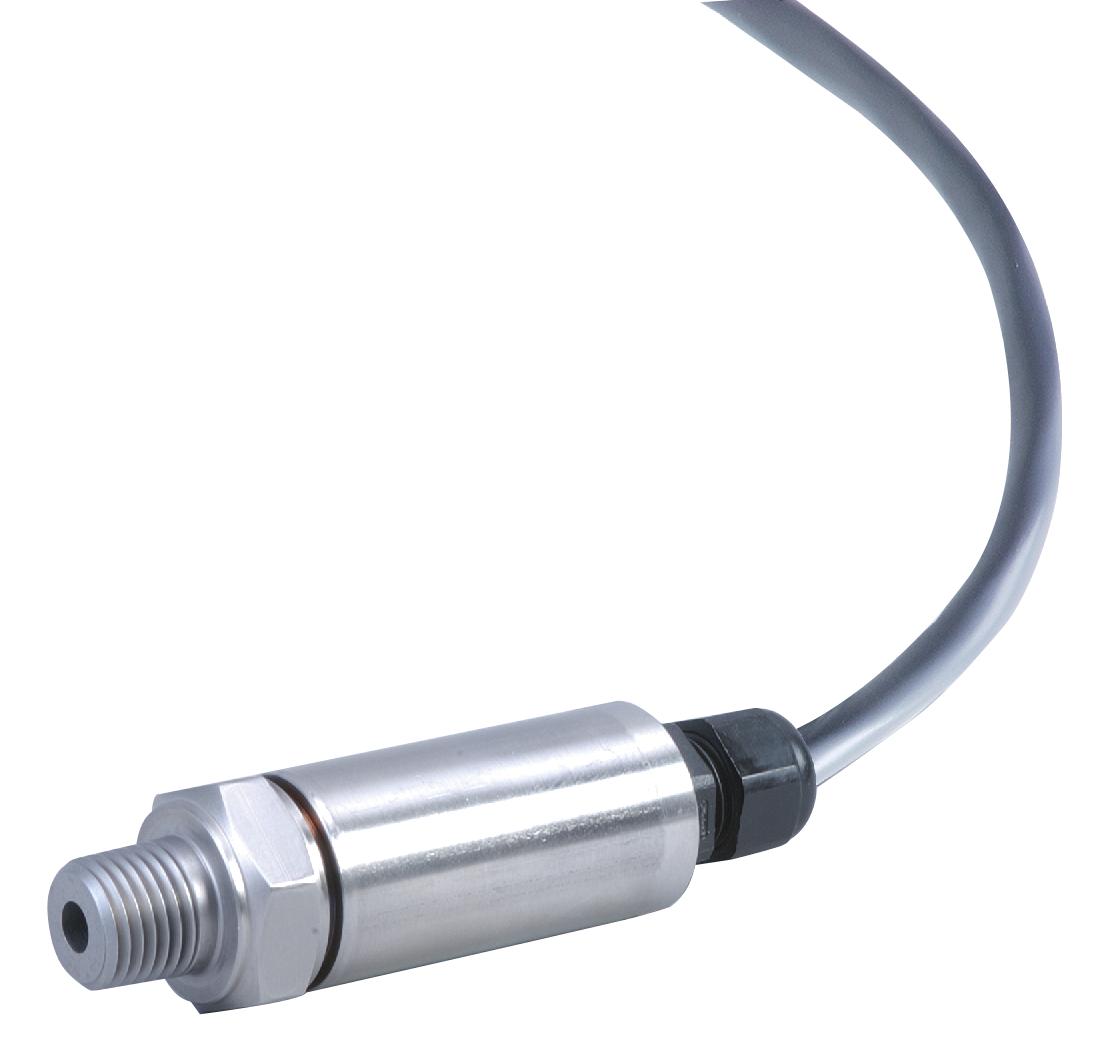

OMEGA PX309100GI Pressure Transducer
The PX309 series high-performance general-purpose pressure transducer employs advanced silicon technologies to deliver accurate and reliable measurements. It features a gauge pressure range from 0 to 6.9 bar (0 to 100 psi) and is constructed entirely of stainless steel for durability. The device provides a 4 to 20mA output signal, ensuring compatibility with various control systems. It offers high stability with a typical long-term stability of ±0.25% over one year and operates within a temperature range of -40°C to 85°C (-40°F to 185°F). The transducer has an IP65 protection rating, a rugged design, and includes a quarter-inch 18 MNPT pressure port and a 1.5-meter cable connection. Each unit comes with a general-purpose pressure transducer calibrated with a 5-point NIST-traceable calibration. Units measuring 100 psig and above can be subjected to vacuum conditions on the pressure port without damage.
OMEGA PX309100GI Pressure Transducer Specifications:
- Pressure Range: 0 to 6.9 bar (0 to 100 psi)
- Construction: All Stainless Steel
- Output Signal: 4 to 20mA
- Accuracy: ±0.25% of FS (Long-term stability)
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
- Protection Class: IP65
- Pressure Port: 1/4 inch MNPT
- Cable Connection: 1.5 meters
- Calibration: 5-point NIST-traceable calibration
- Applicable for vacuum conditions on units 100 psig and above
- High stability, low drift, rugged solid-state design
Buy the OMEGA Series PX309 Pressure Sensor: PX309100GI
Purchase the OMEGA PX309 series pressure transducer online today. Engineered for accuracy, durability, and stability with stainless steel construction, IP65 protection, and NIST calibration. Ideal for industrial applications requiring reliable pressure measurement, it features a 4 to 20mA output signal compatible with control systems. Easy to install with a quarter-inch MNPT port and 1.5-meter cable, this rugged device ensures long-term stability and performance under harsh conditions. Elevate your measurement accuracy by buying online now for swift delivery and trusted quality.
Get OMEGA PX309100GI today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA PX309100GI?
You can click on the BUY or RFQ button to purchase PX309100GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX309100GI?
You can download the PX309100GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX309100GI?
OMEGA
