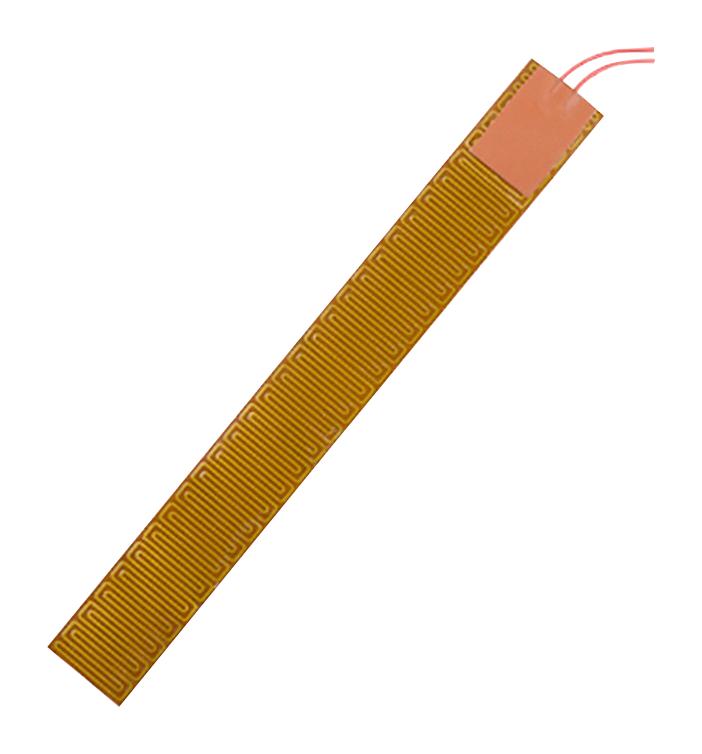

OMEGA KHLVA1122P Polyimide Heater
Polyimide film insulated flexible heater designed for precise temperature control in industrial applications. Featuring etched foil design, maximum thickness of 0.010 inches, and operating temperatures up to 150°C (302°F). Available in various sizes and watt densities of 2.5, 5, or 10 W/in?, with options for pressure-sensitive adhesive. Suitable for heating diverse surfaces with easy installation, excellent chemical resistance, and rugged durability, these heaters are ideal for process control, laboratory, and manufacturing environments. Custom sizes and specifications are available upon request for unique application needs.
OMEGA KHLVA1122P Polyimide Heater Specifications:
- Material: Polyimide film with etched foil design
- Maximum Thickness: 0.010 inches
- Operating Temperature: -40°C to 150°C (-40°F to 302°F)
- Wattage: 2.5, 5, or 10 W/in?
- Dielectric Strength: 1250 VAC
- Minimum Bending Radius: 0.032 inches
- Adhesive: Optional pressure-sensitive adhesive (PSA)
- Wire: PTFE insulated, stranded, AWG 22
- Uses: Industrial, laboratory, process control
- Custom sizes available upon request
Buy the Buy Omega Polyimide Flex Heater Part Number KHLVA1122P Online
Purchase Omega polyimide flexible heaters online to ensure high-quality temperature control in your industrial or laboratory application. These heaters feature durable polyimide film encasing with etched foil design, operating up to 150°C. Available in various sizes and watt densities, with optional adhesive for easy installation. Designed with excellent chemical resistance and rugged durability, Omega heaters are ideal for process temperature regulation. Order now to benefit from fast shipping, detailed manuals, and tailored solutions to meet your specific heating requirements, ensuring optimal performance and energy efficiency.
Buy Omega KHLVA1122P polyimide flexible heater now and experience reliable, easy-to-install heating solutions suitable for diverse industrial needs.
