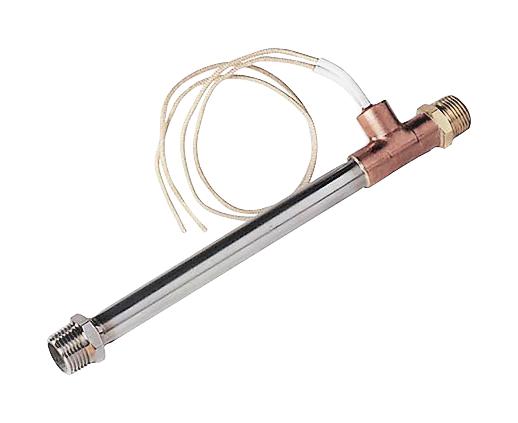

OMEGA AHP5052 Inline Air Heater
The AHP Series is designed for in-line air and gas heating applications, capable of reaching temperatures up to 540°C (1000°F). These heaters feature adjustable wattage and flow rates, making them suitable for baking, drying, metalworking, packaging, welding, and synthetic material processing. Available in multiple models with different voltages, heated lengths, and flow capacities, they can be mounted horizontally with optional NPT fittings. Robust construction with ceramic elements and stainless steel sheaths ensures durability and efficient operation in demanding industrial environments.
OMEGA AHP5052 Inline Air Heater Specifications:
- Heated Length: 89 mm (3.5 inches) to 140 mm (5.5 inches)
- Wattage Range: 50 W to 750 W depending on model
- Maximum Air Flow: 8 to 20 SCFM
- Operating Voltage: 120 Vac, 240 Vac, or dual voltage options
- Maximum Diameter: 8 mm (0.31 inches) to 20 mm (0.79 inches)
- Fittings: NPT threaded options available; without fittings by request
- Temperature Capacity: Up to 540°C (1000°F)
- Construction: Ceramic coil support, stainless steel sheath, epoxy seal
- Lead Lengths: 0.3 m (1 foot) fiberglass insulated leads
- Dimensions: correspond to model specifications, with heated lengths ranging from 89 mm (3.5 inches) to 140 mm (5.5 inches)
Buy the Omega Series AHP In-Line Air Heater: AHP5052
Order the Omega AHP5052 inline air heater today to enhance your heating process with reliable performance up to 540°C. Designed for demanding industrial environments, this heater features adjustable wattage, high flow capacity, and durable materials. Perfect for baking, drying, and metalworking operations, it provides efficient, consistent heat and easy installation with optional NPT fittings. Enjoy fast delivery and expert support when you purchase online, ensuring your project stays on schedule with a high-quality, long-lasting heating solution.
Get Omega AHP5052 today—built for precision and long-lasting durability in industrial air heating applications.
Frequently Asked Questions
Where can I buy OMEGA AHP5052?
You can click on the BUY or RFQ button to purchase AHP5052 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part AHP5052?
You can download the AHP5052 datasheet or visit the OMEGA website for support.
Who is the manufacturer of AHP5052?
OMEGA
