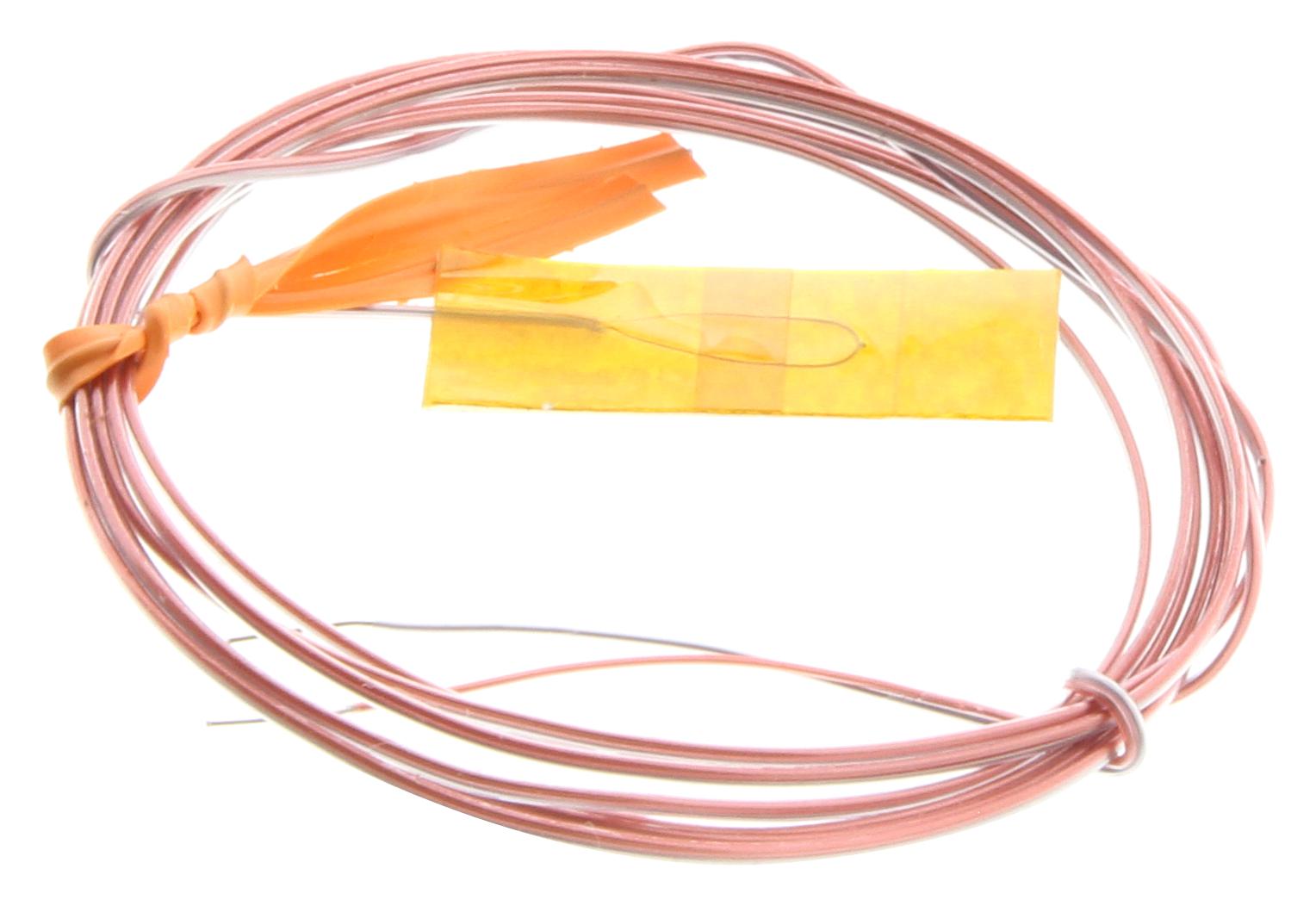

OMEGA SA3T72SRTC Surface Thermocouple
The SA3 Series Self-Adhesive Thermocouples are designed for rapid temperature measurement with a flexible polyimide carrier and self-adhesive backing. They feature a low mass junction for fast response and are resistant to chemicals and oils, suitable for outdoor and wet environments including bright sunlight. Available in Type J, K, T, and E with ANSI or IEC color codes, these thermocouples include options with miniature color-coded connectors. They operate over a temperature range of -40 to 260°C, providing reliable, accurate performance in industrial, laboratory, and environmental applications.
OMEGA SA3T72SRTC Surface Thermocouple Specifications:
- Thermocouple types: J, K, T, E (ANSI or IEC color codes)
- Temperature Range: -40°C to 260°C (-40°F to 500°F)
- Sensor Temperature: -17°C to 260°C (0°F to 500°F)
- Connector Temperature: -29°C to 180°C (-20°F to 356°F)
- Accuracy: Special limits of error
- Construction: Ungrounded sensor with polyimide tape base, silicone adhesive, PFA insulation, and jacketed 30 AWG cable
- Insulation Resistance: Minimum 100 MQ at 100 Vde
- Physical Dimensions: Lead length options - 1m, 2m, 3m; strip or molded miniature connectors available
Buy the Thermocouple Series SA3 Temperature Sensor: SA3T72SRTC
Order the SA3 Series Self-Adhesive Thermocouple online today and enhance your temperature measurement accuracy in challenging environments. These thermocouples feature a fast-responding junction, chemical and oil resistance, and flexible mounting options. Available with strip leads or miniature connectors, they suit outdoor and wet conditions from -40°C to 260°C. Easy to install and operate, they are ideal for industrial applications, environmental monitoring, and laboratory uses, ensuring precise temperature readings with durable, high-quality construction for reliable long-term performance.
Buy Thermocouple Series SA3 temperature sensor with self-adhesive, chemical-resistant design now and experience quick response and reliable outdoor performance.
