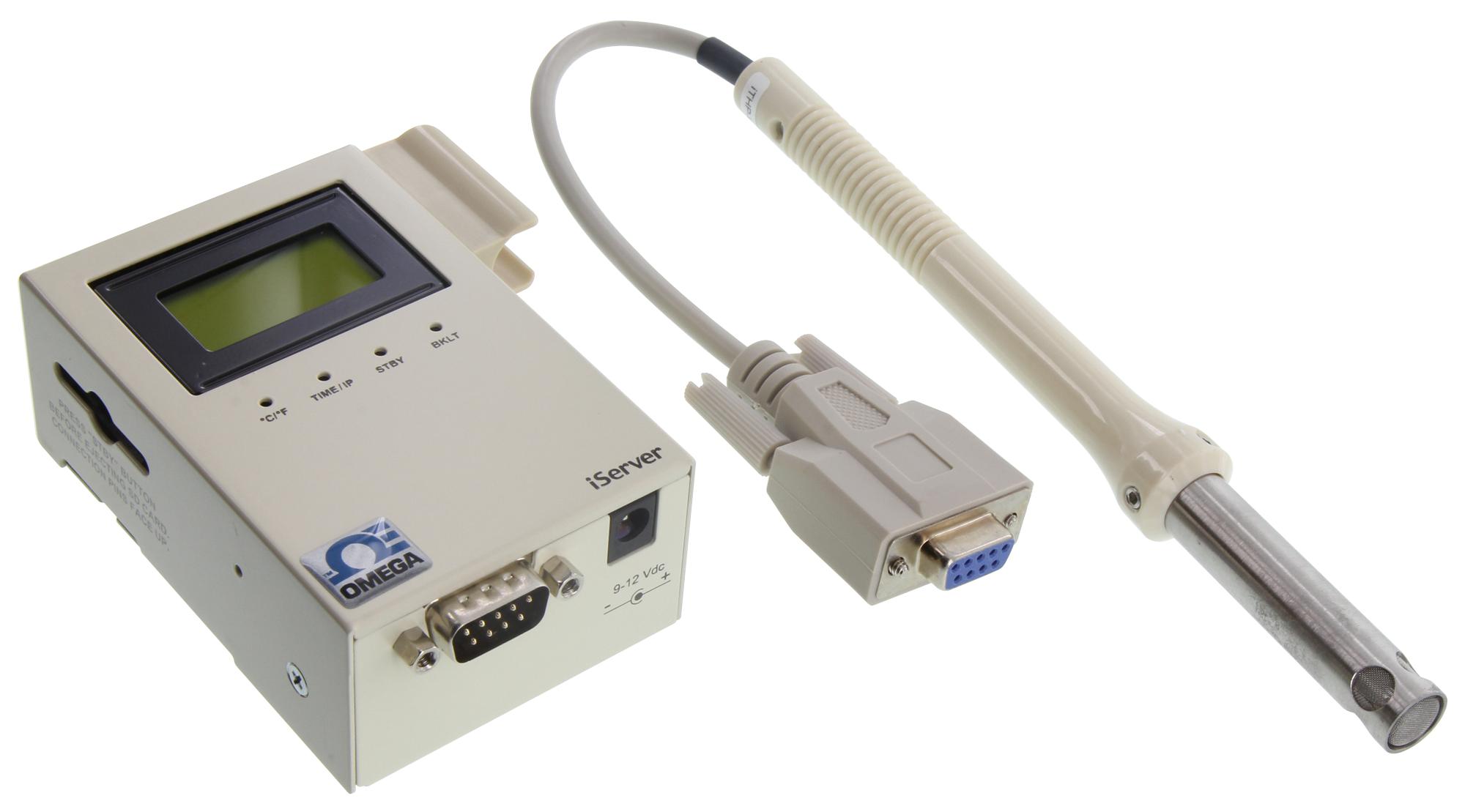

OMEGA ITHXSD2 Temperature Humidity Data Logger
The Omega ITHX-SD-2 is a temperature and humidity data logger equipped with online Ethernet connectivity for remote monitoring. It allows users to record and access real-time temperature, relative humidity, and dew point data via a web browser, without the need for specialized software. The device features an active web interface that displays current readings, charts for temperature and humidity, and can log data in standard formats compatible with spreadsheet and data acquisition programs such as Excel or Visual Basic. It includes a removable 2GB SD card capable of storing up to seven years of data collected at ten-second intervals. The data logger is ideal for applications like clean rooms, computer rooms, HVAC, pharmaceuticals, food storage, hospitals, laboratories, semiconductor fabs, electronic assembly, warehouses, museums, greenhouses, and animal shelters. Additional features include email alarms, webcam integration, LCD display with dual channel charts, two relays rated at 1.5A, a universal 100-240VAC power adapter, and support for Ethernet protocols including TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet. The unit has a steel case, dimensions of 39mm x 62mm x 90mm, weighs approximately 389 grams, and operates on 9 to 12V DC power at 3.5W. It comes with an LCD display, two relay alarms, an industrial 50mm wand probe, a connecting cable with DB9 connector, a 9V DC backup battery, and an SD card.
OMEGA ITHXSD2 Temperature Humidity Data Logger Specifications:
- Dimensions: 39mm x 62mm x 90mm (1.54 x 2.44 x 3.56 inches)
- Weight: Approximately 389 grams (0.86 lbs)
- Power Supply: 9 to 12 Vdc, 3.5W, 100-240 Vac power adapter included
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Relative Humidity Range: 0 to 100% RH
- Relative Humidity Accuracy: ±2% at 10-90% RH, ±3-4% at extremes
- Temperature Accuracy: ±0.5°C (±1°F) in typical range, extended for industrial probes
- Resolution: 0.1% RH, 0.1°C (14-bit for temperature, 12-bit for humidity)
- Data Storage: 2GB SD card (up to 7 years at 10s interval)
- Protocols Supported: TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, Telnet
- Interfaces: Ethernet RJ45, digital DB9 for sensors, LCD display
- Relays: Two 1.5A @ 30V relays, programmable for high/low set points
- Additional: Web server, email alarms, webcam/IP camera link, interchangeable sensors with calibration options
- Enclosure: Steel metal case with wall mount
- Compliance: NIST traceable calibration certificates available
Buy the Omega Series iServer Temperature Humidity Dew Point Monitoring: ITHXSD2
Purchase the Omega ITHX-SD-2 online and experience reliable remote temperature and humidity monitoring. Featuring Ethernet connectivity, SD storage for up to seven years of data, dual relays, web-based interface, and alarm features, it’s ideal for laboratories, clean rooms, and storage facilities. Its easy installation and comprehensive data logging make it perfect for environmental control, ensuring safety and compliance with industry standards while providing real-time access via any web browser for quick decision-making and process optimization.
Get Omega ITHX-SD-2 today—built for precision, long-lasting durability, and remote monitoring via web browser.
