OMEGA KHAKIT Polyimide Heater Kit

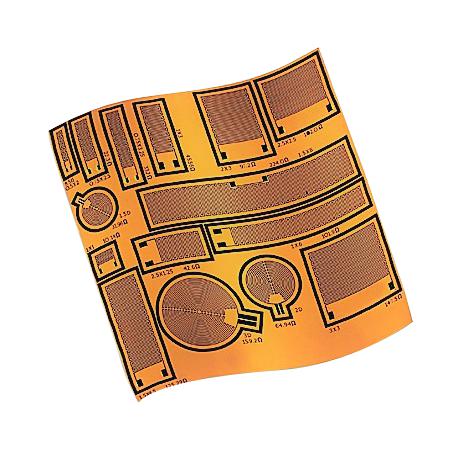

The OMEGA KHA-KIT Polyimide Heater Kit provides thin and flexible heating solutions with adhesive backing, designed to conform to practically any flat or curved surface. This kit is ideal for aerospace, analytical equipment, tooling, commercial equipment, agriculture, packaging, and material handling applications. The kit contains 15 different shapes, outlined on a sheet with line markings for easy selection and cutout. When used in combination, these heaters can provide a number of resistances and wattages. Leads can be soldered on or connected with alligator clips. A PTFE-insulated lead wire is recommended for energizing the heater, and a temperature or power controller is required to regulate heater temperature.
OMEGA KHAKIT Polyimide Heater Kit Specifications:
- Withstand Temperature Extremes: from -200 to 200ºC (-328 to 392ºF)
- Tensile Strength: Excellent
- Tear Resistance: Excellent
- Out-Gassing: Low
- Wattage: 2.5, 5, or 10 W/in2
- Minimum Radius: 0.032"
- Chemical Resistance: to Many Solvents and Oils
- Adhesive: Pressure Sensitive
- Voltage: 115 or 230 Vac
- Thickness: 0.203 mm (0.008")
- Maximum Operating Temperature (Polyimide): 200°C (392°F)
- Maximum Operating Temperature (Adhesive Backing, Continuous Use): 149°C (300ºF)
- Maximum Operating Temperature (Adhesive Backing, Short Time Periods): Up to 232°C (450°F)
- Dielectric Strength: 1000 Vac minimum
