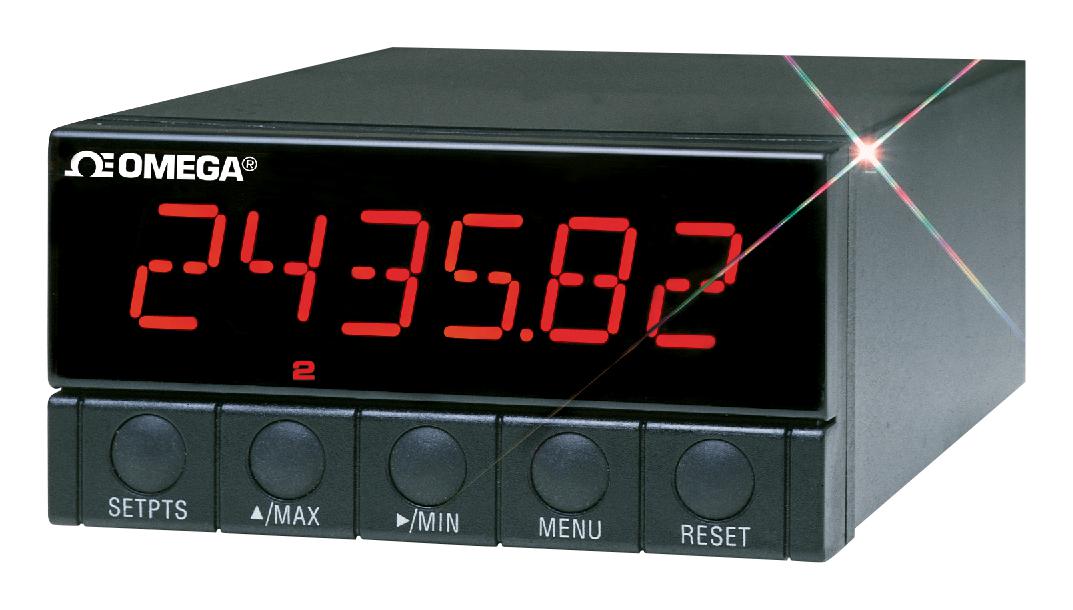

OMEGA DP41E Process Indicator
The DP41E series process indicator offers high accuracy with ±0.005% readability and advanced features including multiple input types such as thermocouples, RTDs, voltage, and current. It features a 6-digit LED display with optional green or red LED colors, enhanced readability, and versatility for industrial applications. The unit supports NEMA 4 (IP65) front panel protection, multiple communication options like RS232/RS485, and configurable analog and relay outputs. Designed for precise measurements, it suits temperature, pressure, strain, and process control in demanding environments, ensuring reliable performance and easy front-panel programming.
OMEGA DP41E Process Indicator Specifications:
- Display: 6-digit, 14-segment LED, height 13.7 mm (0.54 inches), red or green LED options
- Input Types: Thermocouple (J, K, T, E, R, S, B, N, J DIN), RTD (2-, 3-, 4-wire, 6 to 6000 Ω), Voltage (0-100mV to 0-100V), Current (0-20mA, 4-20mA)
- Resolution: 0.01°C/°F, 15-bit resolution, accuracy ±0.2°C for thermocouples and RTDs
- Power: 115 or 230 Vac or 10-32 Vdc, consumption 6 W (nominal)
- Operating Temperature: 0 to 50°C (32 to 122°F), storage -40 to 85°C (-40 to 185°F)
- Protection: NEMA 4 (IP65) front panel, splashproof lens options
- Communication: RS232/RS485 serial options, baud rate up to 19.2K, configurable transmission
- Outputs: 4 isolated open-collector relays, rated 7A @ 30Vdc; optional BCD, analog outputs (0-5V, 0-10V, 4-20mA)
- Dimensions: 48 H x 96 W x 165 mm D, panel cutout 92 mm x 92 mm
- Additional Features: Min/Max storage, peak/valley detection, digital tare, front panel programming, optional split-display models
Buy the Omega DP41E – Reliable Process Indicator for Industrial Applications
Order the Omega DP41E process indicator today and enhance your industrial measurement system. With high precision, multiple input types, and robust IP65 protection, it ensures reliable, accurate data for temperature, pressure, and strain applications. Its easy front-panel programming and multiple communication options make setup quick and convenient. Ideal for demanding environments, this process indicator offers flexibility with configurable outputs, ensuring your process control is precise and efficient. Invest today for superior performance and peace of mind in your operations.
Buy Omega DP41E now and experience unmatched accuracy and versatile measurement capabilities for your industrial process control needs.
