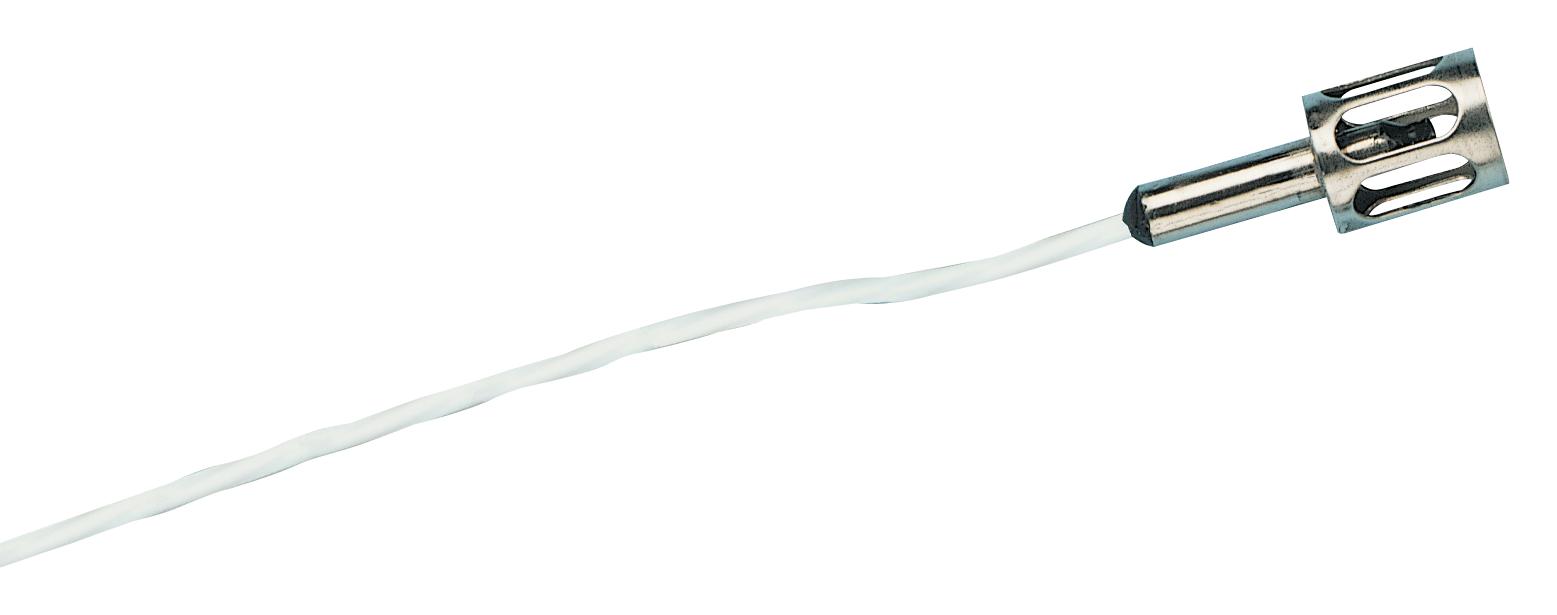

OMEGA RTD806 Industrial RTD Sensor
These industrial-grade temperature sensors are designed for precise air and gas monitoring, available in stainless steel or plastic housings. They feature platinum elements with a resistance of 100.00 +0.12 Q at 0°C, ensuring high accuracy in a broad temperature range up to 230°C. Ideal for HVAC, environmental testing, and electronic enclosure thermal protection, these sensors are supplied with 1 meter of PFA-insulated, nickel-plated copper, 3-conductor cable. Variants include models with different mounting options, termination types, and housing materials for versatile industrial applications.
OMEGA RTD806 Industrial RTD Sensor Specifications:
- Resistance at 0°C: 100.00 +0.12 Q
- Temperature coefficient: 0.00385 242/°C
- Cable length: 1 meter (40 inches)
- Conductor: 3-conductor, #26 AWG stranded nickel-plated copper
- Insulation: PFA-jacketed, PFA-insulated cable
- Housing options: Stainless steel, plastic, or epoxy-covered
- Maximum temperature: 230°C (450°F)
- Sensor element: Platinum, Class A
- Configuration options: 3-wire construction, various mounting and termination types
- Mounting: Direct contact, bolt, NPT or flat surface, screw mounting
- Accuracy: Factory calibrated with high stability and response times
- Model variants available with heavy-duty or miniature connectors
- Suitable for air and gas streams, environmental testing, climate control and electronic enclosure monitoring
Buy the Omega Series RTD Temperature Sensor: RTD-806
Discover high-accuracy industrial RTD sensors designed for reliable air and gas temperature monitoring. Available with stainless steel or plastic housings, these sensors feature platinum elements with a resistance of 100.00 +0.12 Q at 0°C. Ideal for HVAC, environmental testing, and electronic enclosure thermal protection, they come with 1 meter of PFA-insulated cable. Variants include different mounting, termination, and housing options, ensuring compatibility with various industrial environments. Purchase online today for dependable, precise temperature measurement solutions.
Order your Omega Series RTD-806 temperature sensor today and ensure precise temperature monitoring for your HVAC, electronic, and industrial applications.
Frequently Asked Questions
Where can I buy OMEGA RTD806?
You can click on the BUY or RFQ button to purchase RTD806 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part RTD806?
You can download the RTD806 datasheet or visit the OMEGA website for support.
Who is the manufacturer of RTD806?
OMEGA
