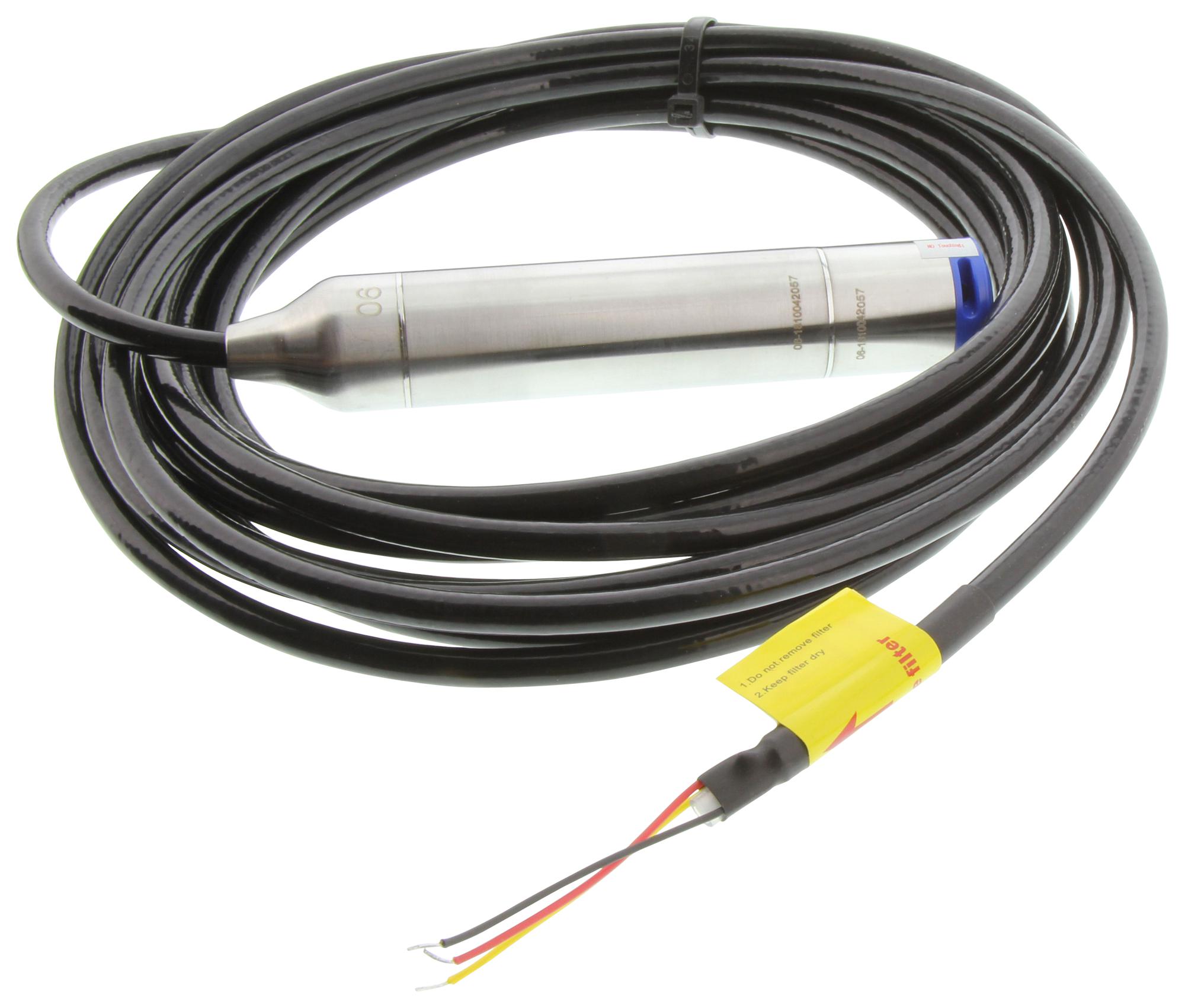

OMEGA PX633A1150GI Submersible Level Transmitter
The PX633 Submersible Level Transmitter is designed for high-accuracy level measurements in demanding environments. It features microprocessor technology with extensive linear and temperature error compensation for precise readings. Its rugged stainless steel body ensures long-term reliability even in turbulent media. The design includes a full potting probe, a dual-seal system, and transient voltage protection for harsh surge conditions. This sensor is ideal for submerged applications needing stable, repeatable, and temperature-compensated level measurements with CE certification and calibration support.
OMEGA PX633A1150GI Submersible Level Transmitter Specifications:
- Accuracy: 0.01% FS for PX633A1, 0.25% FS for PX633A2, 0.50% FS for PX633A5
- Power Supply: 10.5 to 55VDC
- Output Signal: 4 to 20mA DC
- Protection Class: IP68
- Operating Temperature: -10 to 70°C
- Storage Temperature: -30 to 80°C
- Supply Voltage Effect: +0.005% FS/V
- Load Resistance: Less than (U-10)/0.021
- Maximum Current: 20.8mA
- Transmission Distance: Up to 1000m
- Sensor Material: 316 Stainless Steel
- Fill Fluid: Silicon oil
- Diaphragm Material: 316 SS
- Vibration Resistance: 20g (5-2000HZ)
- Protection: IP68
- Power Consumption: 500mW
- Calibration: Provided with calibration sheet
- Ease of installation: Thread connection options including M20.
Buy the Buy Omega Pressure Transmitter Part Number PX633A1150GI Online
Enhance your level measurement accuracy with the Omega PX633 Submersible Level Transmitter, engineered for demanding conditions. Featuring a rugged stainless steel body, full submergibility, and advanced temperature compensation, it offers high precision, stability, and long-term reliability. Its CE certification and calibration support ensure quality and consistency. Whether for turbulent media or challenging environments, this sensor provides dependable, repeatable measurements with easy installation thanks to customizable thread options. Invest in premium level measurement technology today for superior process control.
Get Omega PX633A1150GI today—built for high precision and long-lasting reliability in harsh environments.
Frequently Asked Questions
Where can I buy OMEGA PX633A1150GI?
You can click on the BUY or RFQ button to purchase PX633A1150GI from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PX633A1150GI?
You can download the PX633A1150GI datasheet or visit the OMEGA website for support.
Who is the manufacturer of PX633A1150GI?
OMEGA
