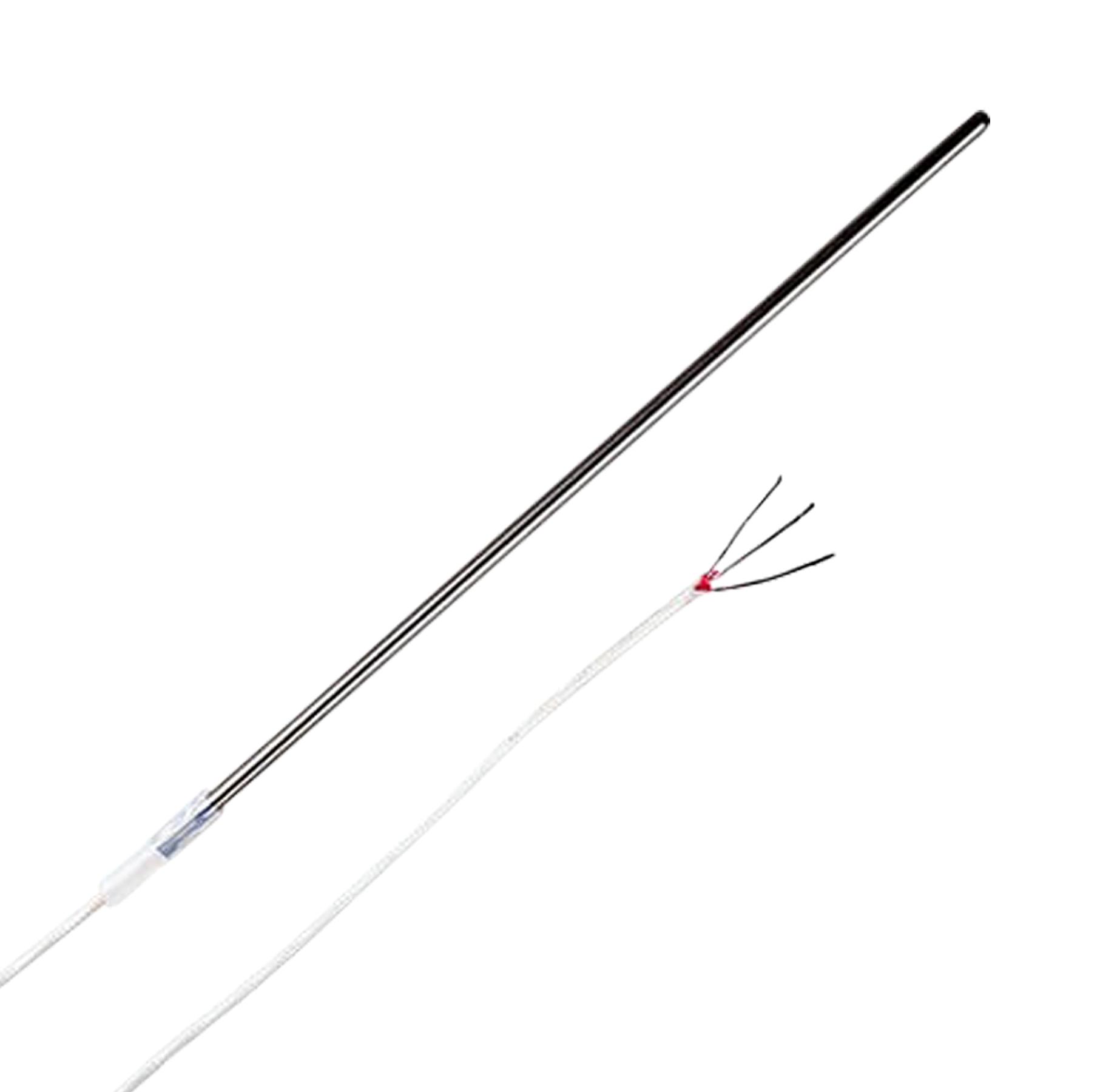

OMEGA PR10L3100182 Industrial RTD Temperature Probe
The PR-10 series RTD probes are high-accuracy temperature sensors designed for industrial and laboratory applications. Available in low, high, and extreme temperature ranges, these probes feature insulated PFA lead wires with shrink-tube strain relief at the sheath/wire transition for enhanced flexibility and durability. They support 2-, 3-, or 4-wire configurations, with standard lengths from 2 to 24 inches. Suitable for liquid immersion, granular materials, and pipe temperature monitoring, these probes operate in temperatures from -200°C to 600°C, conforming to IEC 60751 Class A standards for precise measurements across diverse environments.
OMEGA PR10L3100182 Industrial RTD Temperature Probe Specifications:
- Model: PR-10L (Low), PR-10H (High), PR-10E (Extreme)
- Process Temperature Range: -50 to 250°C, -50 to 450°C, -200 to 600°C respectively
- Accuracy: Class A from -100 to 450°C, otherwise Class B
- Nominal Resistance: 100Ω at 0°C, PT100 Q or PT1000 Q, 2, 3, or 4-wire
- Wire Length: 40 inches standard, configurable longer lengths
- Wire Material: PFA with maximum temperature of 100°C (212°F), 250°C (482°F)
- Probe Diameters: 1/8”, 3/16”, 1/4”
- Standard Lengths: 2, 3, 4, 6, 12, 18, 24 inches
- Ingress Protection: IP67
- Response Time: 2.4 to 10.6 seconds depending on diameter
- Vibration Resistance: IEC 60068-2-6, 5 to 2000 Hz, 5g
- Shock Resistance: IEC 60068-2-27, 50g/11ms
Buy the Omega PR-10L – Reliable Temperature Sensors for Industrial Applications
Secure your temperature monitoring needs with the Omega PR-10 series RTD probes, offering high accuracy, durability, and a wide temperature range from -200°C to 600°C. Suitable for process control, laboratory testing, and industrial applications, these probes feature PFA insulated wires with strain relief, multiple wire configurations, and standard lengths, ensuring flexible installation and precise readings. Order online today and benefit from fast delivery, competitive prices, and technical support for your temperature sensing solutions.
Buy Omega PR-10L RTD probe now and experience unmatched reliability and performance in diverse industrial and laboratory temperature measurements.
Frequently Asked Questions
Where can I buy OMEGA PR10L3100182?
You can click on the BUY or RFQ button to purchase PR10L3100182 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PR10L3100182?
You can download the PR10L3100182 datasheet or visit the OMEGA website for support.
Who is the manufacturer of PR10L3100182?
OMEGA
