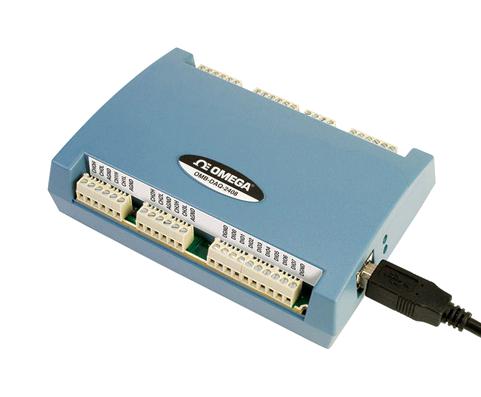

OMEGA OMBDAQ2408 USB Data Acquisition Module
This is a 24-bit isolated USB data acquisition module designed for precise temperature and voltage measurements. It features 16 single-ended or 8 differential analog inputs, along with 8 digital I/O lines and 2 counters. The device includes a 4096-byte isolated memory reserved for sensor configuration and a 256-byte USB memory for external application use. Powered by a high-performance 16-bit RISC microcontroller, it supports USB 2.0 device protocol with backward compatibility to USB 1.1. The maximum USB cable length is 3 meters (approximately 9.8 feet). Included in the package are the module, a 2-meter (6-foot) USB cable, a quick start guide, TracerDAQ software, and an operator’s manual on CD.
OMEGA OMBDAQ2408 USB Data Acquisition Module Specifications:
- A/D Converter Type: ADS1256, 24-bit Sigma Delta
- Analog Inputs: 16 SE/8 DIFF channels, configurable as voltage or thermocouple inputs
- Input Voltage Ranges: +10V to +0.078125V, thermocouple mode +0.078125V
- Input Impedance: 10 MQ
- Input Leakage Current: +20 nA
- Input Capacitance: 590 pf
- Isolation: 500 Vde minimum between field wiring and USB interface
- Sampling Rates: Up to 1.1 kS/s aggregate, adjustable per channel
- Input Voltage Max: +22V (power on), +10V (power off)
- A/D Resolution: 24 bits
- Digital I/O: 8 channels, 0-15V CMOS input, 0-5V output
- Counters: 2 channels, 32-bit, max input frequency 1 MHz
- Memory: 4096 bytes EEPROM, 256 bytes USB micro for external app
- Power: 5V, 275 mA, power supply range 4.75-5.25V
- Dimensions: 127 x 89.9 x 35.6 mm (5.00 x 3.53 x 1.40 inches)
- Weight: 160 g (5.6 oz)
- Environment: 0-50°C operating, -40-85°C storage, 0-90% RH non-condensing
- USB: 2.0, compatible with USB 1.1, max cable length 3 m.
Buy the Omega OMBDAQ2408 – Reliable Temperature and Voltage Acquisition for Industrial Applications
Order the Omega USB Data Acquisition Module today and enhance your measurement capabilities with 24-bit resolution, multiple analog and digital inputs, and robust isolation. Perfect for industrial temperature and voltage testing, this device offers high accuracy, flexible configuration, and full software support including TracerDAQ and LabVIEW. Compact and easy to connect via USB 2.0, it ensures reliable data logging and analysis for engineers and scientists alike. Invest now to improve your data acquisition setup with a trusted, precision instrument.
Buy Omega OMBDAQ2408 now and experience unmatched reliability and performance in temperature and voltage measurements with versatile digital inputs and counters.
