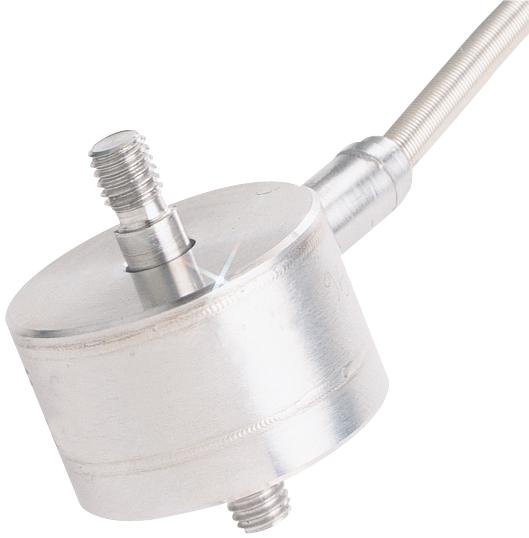

OMEGA LCFD50 load cell
The LCFD/LCMFD series comprises high-accuracy subminiature load cells suitable for tension and compression measurements in industrial applications. Crafted from stainless steel, these load cells feature male thread studs for load attachment and are designed for stability and minimal off-axis effects. They operate within a temperature range of -54°C to 121°C, ensuring reliability under varying conditions. With precision calibration, low hysteresis, and a protective IP65 enclosure, they provide dependable readings for forces from 2.2 Ib to 1000 Ib or 10 N to 5000 N, making them ideal for precise force measurement tasks.
OMEGA LCFD50 load cell Specifications:
- Excitation: 10 Ib/50 N: 5 Vde, 225 Ib/100 N: 10 Vde
- Output: 2.2 Ib/10 N: 1.5 mV/V, 25 Ib/20 N: 2 mV/V
- Accuracy (Linearity and Hysteresis): +0.15% FSO at 100 Ib/500 N
- Calibration: 5-point in tension
- Zero Balance: +2% FSO
- Operating Temp Range: -54°C to 121°C
- Compensated Temp Range: 16°C to 71°C
- Thermal Effects: Span and Zero +0.009% FSO/°C
- Overload Limit: Safe overload 150%, Ultimate overload 300%
- Bridge Resistance: Minimum 350 Ω
- Construction: Stainless steel
- Electrical Connection: 1.5 m shielded cable
- Protection Class: IP65
Buy the Industrial Load Cells – Reliable Tension and Compression for Industrial Applications
Purchase the high-accuracy stainless steel load cell now to benefit from precise tension and compression force measurements essential for industrial applications. These load cells provide reliable data, excellent stability, and durability under demanding conditions. Equipped with a robust IP65 enclosure, they suit various environments, including factory and laboratory settings. Easy to install with male thread studs, these load cells support a wide load range from 2.2 Ib to 1000 Ib or 10 N to 5000 N, ensuring accurate readings for quality control, testing, and force measurement tasks. Buy online today to upgrade your measurement systems efficiently and confidently.
Order your high-accuracy stainless steel load cell today and ensure precise force measurements for your industrial projects with confidence.
