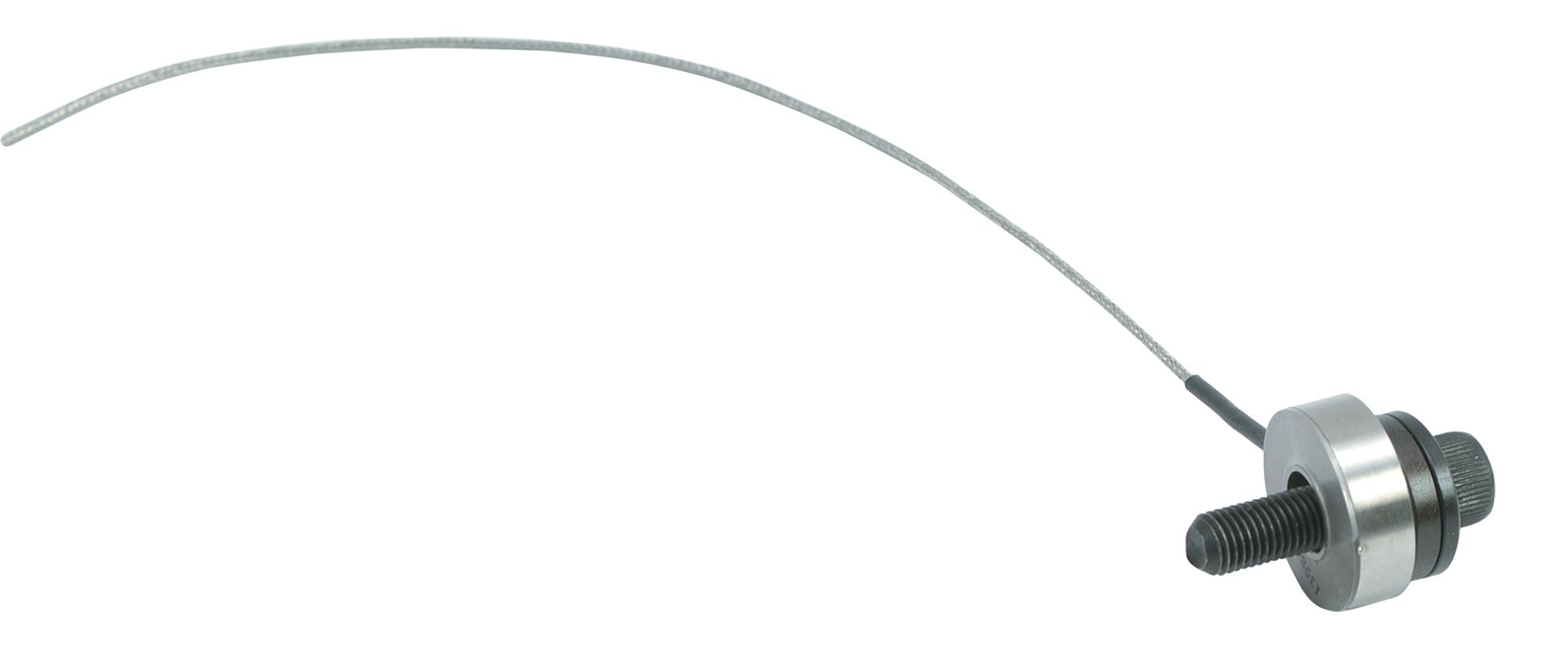

OMEGA LCWD50K Load Washer
The Omega LCWD-50K is a stainless steel load washer designed for measuring bolt compressional forces with high accuracy. It features spherical washers and load buttons included for use as a compression load cell. With a capacity of 50,000 lb (222,420 N), it operates at 10 Vdc excitation and provides a nominal output of 2 mV/V. Its accuracy is ±0.75% BFSL, and it can safely withstand overloads up to 120% of capacity. The device functions within -40°C to 127°C and includes a 1.5-meter shielded cable, calibration data, and shunt resistor. Not field serviceable, it requires careful handling during use.
OMEGA LCWD50K Load Washer Specifications:
- Capacity: 50,000 lb (222,420 N)
- Excitation Voltage: 10 Vdc (15V max)
- Output: 2 mV/V nominal
- Accuracy: ±0.75% BFSL
- Zero Balance: Within ±4.0% FSO
- Operating Temperature: -40°C to 127°C
- Full-Scale Deflection: 0.001 inches
- Material: Stainless steel
- Cable: 1.5 meters (5 feet), insulated and shielded
- Overload Limit: 120% capacity
- Ultimate Overload: 200% capacity
- Includes spherical washers, load buttons, NIST-traceable calibration, and shunt data
- Not field serviceable; handle with safety precautions during installation and testing
Buy the Omega LCWD-50K – Reliable Load Washer for Industrial Applications
Order the Omega LCWD-50K load washer online today for accurate bolt compression force measurement. This stainless steel device includes spherical washers, load buttons, and calibration data, ensuring reliability in industrial and laboratory settings. Its high-capacity design supports up to 50,000 lb and operates with a 10 Vdc excitation for precise readings. Easy to integrate with safety cables included, it’s perfect for demanding applications requiring accuracy and durability. Shop online now to enhance your measurement capabilities with this essential load testing component.
Get Omega LCWD-50K today—built for precision and long-lasting durability in bolt force measurement tasks.
Frequently Asked Questions
Where can I buy OMEGA LCWD50K?
You can click on the BUY or RFQ button to purchase LCWD50K from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part LCWD50K?
You can download the LCWD50K datasheet or visit the OMEGA website for support.
Who is the manufacturer of LCWD50K?
OMEGA
