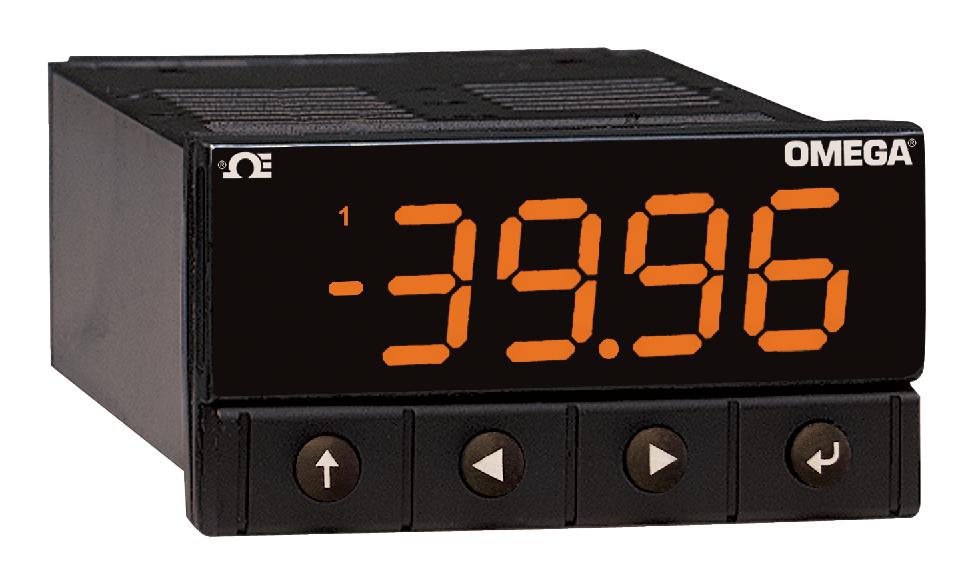

OMEGA CN32PT304C24 Temperature Controller
The platinum series temperature, process, and strain controllers offer high performance, versatile input options including thermocouples, RTDs, and strain sensors. Features include a bright 3-color LED display, fully firmware configurable setup with auto recognition, multiple control and alarm outputs, and built-in communication options such as USB, Ethernet, and serial. These compact controllers support auto-tune PID with fuzzy logic, ramp/soak programming, cascade control, and advanced alarm functions. Suitable for demanding industrial and scientific applications, they deliver precise measurement, reliable control, and flexible connectivity.
OMEGA CN32PT304C24 Temperature Controller Specifications:
- Input Types: Thermocouple types J, K, T, E, R, S, B, C, N; RTDs 100/500/1000 Q; Thermistors 2252 Q, 5K Q, 10K Q; Analog voltage -100 to 100 mV, -1 to 1 V, -10 to 10 V; Process current 4-20 mA, 0-24 mA; Strain +50 mV, +100 mV.
- Input Impedances: 10 MΩ for voltage/strain, 5 Ω for process current, 10 kΩ for thermocouples.
- ADC Conversion: 24-bit sigma delta, 20 samples/sec; Digital filter adjustable 0.05-6.4 sec.
- Control Modes: Auto-tune PID with fuzzy logic, ON/OFF, proportional modes, cycle times 0.1-199 sec, ramp/soak up to 99 programs, chainable segments.
- Outputs: Up to 6 programmable outputs including DC pulse, SSR, mechanical relays, analog voltage/current, isolated analog, with 0.1% accuracy, response time 100 ms.
- Communication: Standard USB host, Ethernet (optional), RS232/RS485 (optional), protocols include ASCII, MODBUS, TCP/IP.
- Power: 90-240 Vac or 24 Vac/12-36 Vdc low voltage; built-in EMI/RFI filters, UL, cUL, CE approved.
- Physical: External dimensions vary by model, specifications ≥85 words include measurements, environmental ratings, front bezel NEMA/IP ratings, and certifications.
- Additional features include remote setpoint, latch reset, high-high/low-low alarms, configuration protection, and web server capability on Ethernet models.
Buy the Platinum Series Temperature Controller: CN32PT304C24
Experience unmatched control with the Platinum Series Temperature Controller, featuring versatile inputs, up to six outputs, auto-tune PID, cascade control, and multiple communication options. Its bright 3-color LED display allows easy status verification, while firmware configurability simplifies setup. Critical for automation, laboratory, and industrial applications, this controller offers precise measurement, fast response, and reliable operation. Perfect for demanding environments requiring robust connectivity and flexible programming, ensuring optimal process performance with ease of use.
Get Platinum Series CN32PT304C24 today—built for precise temperature control and long-lasting durability.
Frequently Asked Questions
Where can I buy OMEGA CN32PT304C24?
You can click on the BUY or RFQ button to purchase CN32PT304C24 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part CN32PT304C24?
You can download the CN32PT304C24 datasheet or visit the OMEGA website for support.
Who is the manufacturer of CN32PT304C24?
OMEGA
