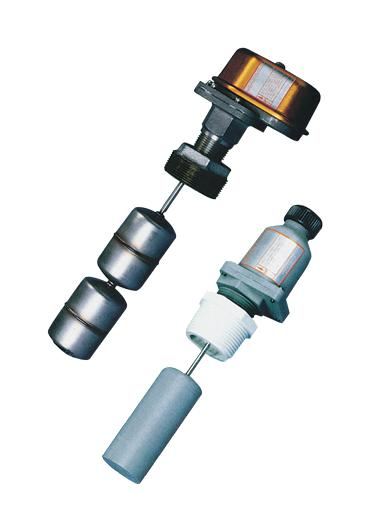

OMEGA LV1101A Industrial Level Switch
The LV-1101A level switch is a rugged, non-magnetic device designed for industrial fluid level control in rust-prone environments. Featuring a SPDT relay rated at 15A for 125 or 250 Vac, it provides reliable operation with up to 10 million cycles. Constructed from corrosion-resistant materials like red brass, phosphor bronze, and 316 stainless steel, it withstands pressures up to 300 psig at 82°C. Suitable for side mounting through a 2 NPT hole, it includes a water-resistant strain relief fitting for durable cable connections, ensuring long-term, maintenance-free operation in challenging conditions.
OMEGA LV1101A Industrial Level Switch Specifications:
- Relay Switch: SPDT 15A @ 125 or 250 Vac; 10,000,000 operations median
- Max Temperature/Pressure: 300 psig @ 82°C (180°F)
- Size: Fits through 2 NPT hole
- Materials: Red brass, phosphor bronze, 316 stainless steel
- Sealing: EPDM seal, cork-chloroprene gasket, Noryl cover
- Float Type: Single float for LV-1101A
- Liquid Level Change to Actuate Switch: Not specified
- Dimensions: Fits through 2-inch NPT hole
Buy the Omega LV1101A – Reliable Non-Magnetic Level Switch for Industrial Applications
Purchase the Omega LV1101A industrial level switch online today for dependable fluid level control in challenging environments. Designed with rugged materials like red brass, phosphor bronze, and 316 stainless steel, it offers reliable operation for controlling pumps and other equipment. With a SPDT relay rated for 15A at 125 or 250 Vac, it ensures long-term durability, up to 10 million cycles. Its compact size fits through a 2 NPT hole, incorporating water-resistant strain relief fittings for secure cable connection, enabling smooth installation and maintenance control.
Get Omega LV1101A today—built for precision and long-lasting durability in rust-prone environments.
