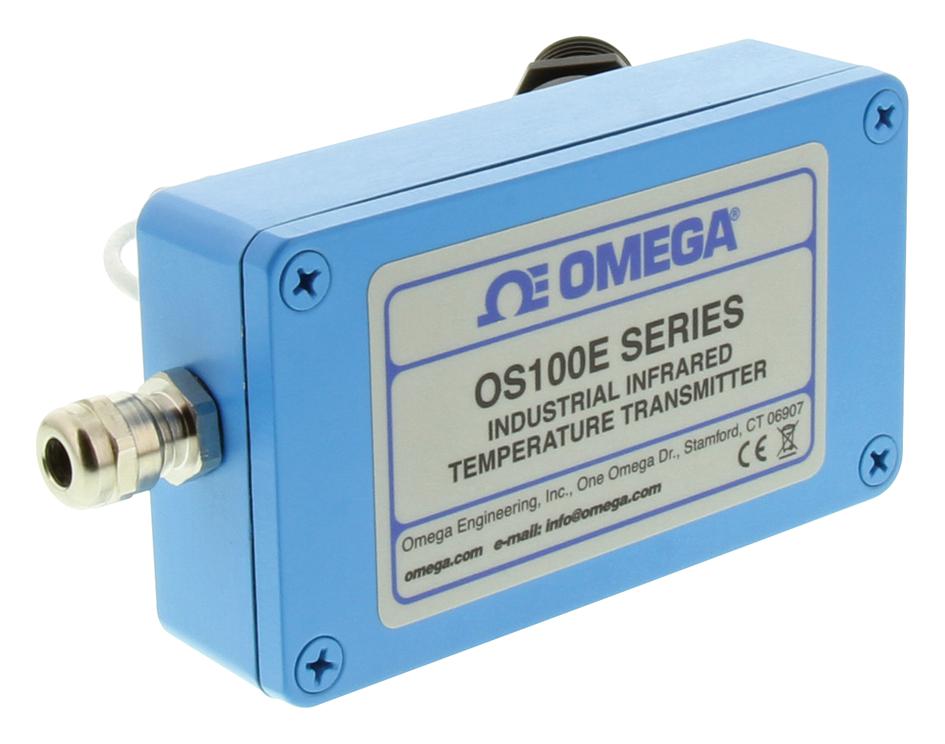

OMEGA OS101EV2 Infrared Temperature Sensor
The OS100E Series miniature infrared temperature sensors provide accurate, fast readings from -18 to 538°C (0 to 1000°F). Featuring a rugged NEMA 4 aluminum housing and a remotely mounted sensor head connected via a shielded cable, these sensors are ideal for confined spaces and harsh environments. They include adjustable emissivity, field-adjustable alarms, PC interface, and various analog and thermocouple outputs. The sensors are suitable for industrial temperature measurement with optional LED display and water cooling jackets for high-temperature applications, ensuring reliability across diverse conditions.
OMEGA OS101EV2 Infrared Temperature Sensor Specifications:
- Temperature Range: -18 to 538°C (0 to 1000°F)
- Accuracy: +2% rdg or 2.2°C (4°F) at 22°C ambient and emissivity ≥0.95
- Optical Field of View: 6:1 (distance/spot size)
- Response Time: 100 ms
- Spectral Response: 5 to 14 microns
- Emissivity Range: 0.1 to 1.00, adjustable
- Display: 4-digit LED, switchable between °C and °F
- Sensor Head Cable Extension: Up to 15 m
- Operating Temperature Main Unit: 0 to 50°C, Sensor Head: 0 to 70°C, High-Temp Sensor Head: 0 to 85°C
- Housing: NEMA 4 (IP65) aluminum enclosure
- Power Supply: 12-24 Vdc @ 150 mA
- Outputs: 4-20 mA, 0-5 V or 0-10 V, Type K thermocouple, 1 mV/°
- Response Time: 100 ms
- Water Cooling Jacket Max Temperature: 200°C
- Additional Accessories: Laser sight, mounting bracket, water jacket
Buy the Omega Series OS100E Infrared Temperature Sensor: OS101EV2
Order the Omega Series OS100E infrared temperature sensor online today and enjoy fast, accurate temperature readings from -18 to 538°C. Its rugged NEMA 4 aluminum housing and remote sensor head make it ideal for confined or harsh environments. The sensor features adjustable emissivity, multiple analog and thermocouple outputs, and an optional LED display for easy on-site monitoring. Accessories include laser sighting, water cooling jackets, and mounting options. Enhance your industrial temperature measurements by purchasing online for prompt delivery and superior reliability.
Buy Omega Series OS100E OS101EV2 infrared temperature sensor with adjustable emissivity and LED display now and experience unmatched reliability and performance in harsh environments.
Frequently Asked Questions
Where can I buy OMEGA OS101EV2?
You can click on the BUY or RFQ button to purchase OS101EV2 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OS101EV2?
You can download the OS101EV2 datasheet or visit the OMEGA website for support.
Who is the manufacturer of OS101EV2?
OMEGA
