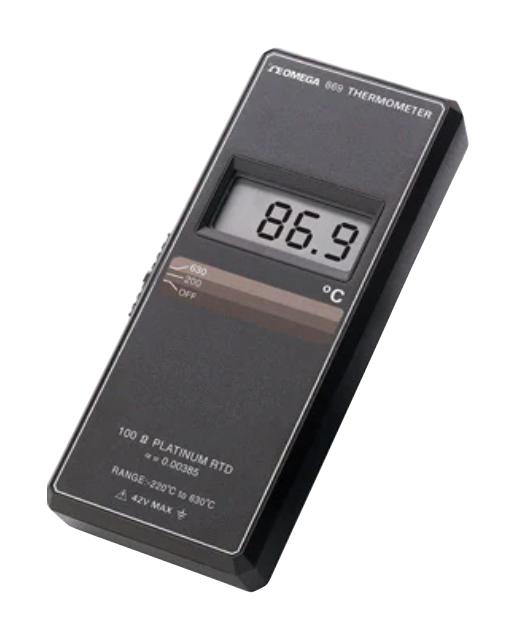

OMEGA 869C RTD Thermometer Celsius

OMEGA 869C RTD Thermometer Celsius Specifications:

• Sensor: 3- or 4-wire 100 Ω Platinum RTD a=0.00385
• Accuracy: Includes DIN 43760 conformity, repeatability, temperature coefficient, time stability and errors with up to 50 Ω of resistance in each lead
• Repeatability: Less than 0.2°F typical for one week at constant ambient temperature
• Temperature Coefficient: 18 to 28°C; less than 18°C or greater than 28°C less than ±(0.015°C)/°C
• Maximum Lead Resistance: 4-wire: 50 Ω max; 3-wire: 10 Ω max
• Display: 3[1] ⁄2 digit LCD, 13 mm (0.5") height; polarity, decimal point, open sensor and overrange indication
• Reading Rate: 1.5 per second
• Battery Life: 500 hours typical, with 9V alkaline battery (included)
• Battery Indicator: Display reads “LO BAT” when less than 10% of life remains
• Linearization: Ratiometric dual-slope A/D with continuous linearization
• Mating Connection: OMEGA[®] series T instrumentation connectors (model TA4F and TA4FL)
• Operating Temperature: -10 to 50°C (14 to 122°F), less than 80% RH, up to 35°C
• Storage Temperature: -35 to 60°C (-31 to 140°F), less than 90% RH, up to 35°C
• Maximum Common Mode Voltage: 42V peak
• Range (200°C Model): -100.0 to +199.9°C; -199.0 to -100.1°C
• Resolution (200°C Model): 0.1°C
• Accuracy (200°C Model): ±0.3°C; ±1.5°C
• Range (1100°C Model): -100 to 630°C; -220 to +101°C
• Resolution (1100°C Model): 1°C
• Accuracy (1100°C Model): ±1°C; ±2°C
• Dimensions: 160 H x 69 W x 31 D mm (6.3 x 2.7 x 1.2")
• Net Weight: 210 g (7.5 oz)
