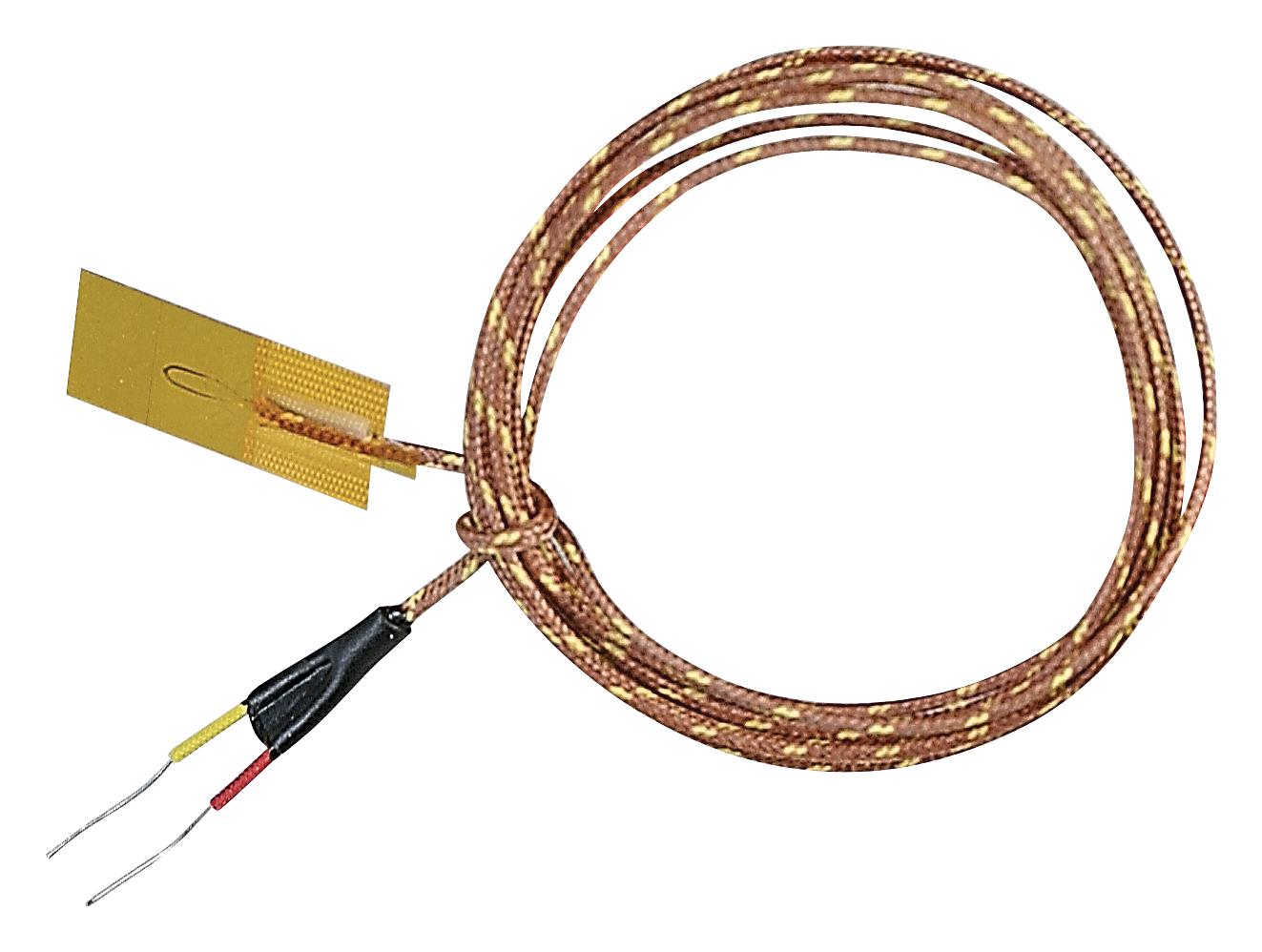

OMEGA SA1XLT Surface Thermocouple
The SA1XL surface thermocouple provides fast temperature response for industrial heating, furnace, or process control applications. Featuring fiberglass-insulated leads rated up to 900°F (482°C) and self-adhesive or cement-on mounting options, it ensures quick installation and accurate readings. Suitable for temperatures up to 600°F (315°C) when cemented, it can be customized with various lengths, connectors, and calibration types. Constructed with a miniature molded connector and optional stainless steel overbraid, the thermocouple excels in demanding environments requiring reliable performance and rapid response times under high-temperature conditions.
OMEGA SA1XLT Surface Thermocouple Specifications:
- Sensor Type: Surface thermocouple
- Lead Wire Material: 30 AWG fiberglass rated to 482°C (900°F)
- Calibration Types: J, K, T, E
- Response Time: Less than 0.15 seconds
- Mounting Options: Self-adhesive, cement-on with OMEGABOND®
- Temperature Range: Up to 260°C (500°F) as self-adhesive, up to 315°C (600°F) when cemented
- Lead Lengths: 1 m (40 inches), 2 m (80 inches), 3 m (120 inches)
- Physical Dimensions: Strip length 25.4 mm (1 inch); Bare wire length 12.7 mm (0.5 inch)
- Connector: Molded miniature connector, optional stainless steel overbraid
- Construction: Fiberglass-insulated wire with optional overbraid for durability
- Response Time: Significantly faster than standard insulated thermocouples
- Environmental Rating: Rated to 260°C (500°F) for adhesive, 315°C (600°F) with cement
- Packaging: Available in 5-pack for convenience
Buy the Omega SA1XL – Reliable Surface Thermocouple for Industrial Applications
Purchase the Omega SA1XL surface thermocouple online to ensure accurate temperature measurements in industrial processes. Featuring fiberglass-insulated leads rated up to 900°F and available in multiple lengths, this thermocouple offers rapid response times of less than 0.15 seconds. Ideal for furnace monitoring and process control, it provides reliable performance whether installed with adhesive or cemented for higher temperature applications. Built with optional stainless steel overbraid, it ensures durability and precision for demanding industrial environments. Order now for immediate delivery and maximize your temperature monitoring precision.
Get Omega SA1XL surface thermocouple today—built for precision, quick response, and long-lasting durability in demanding environments.
