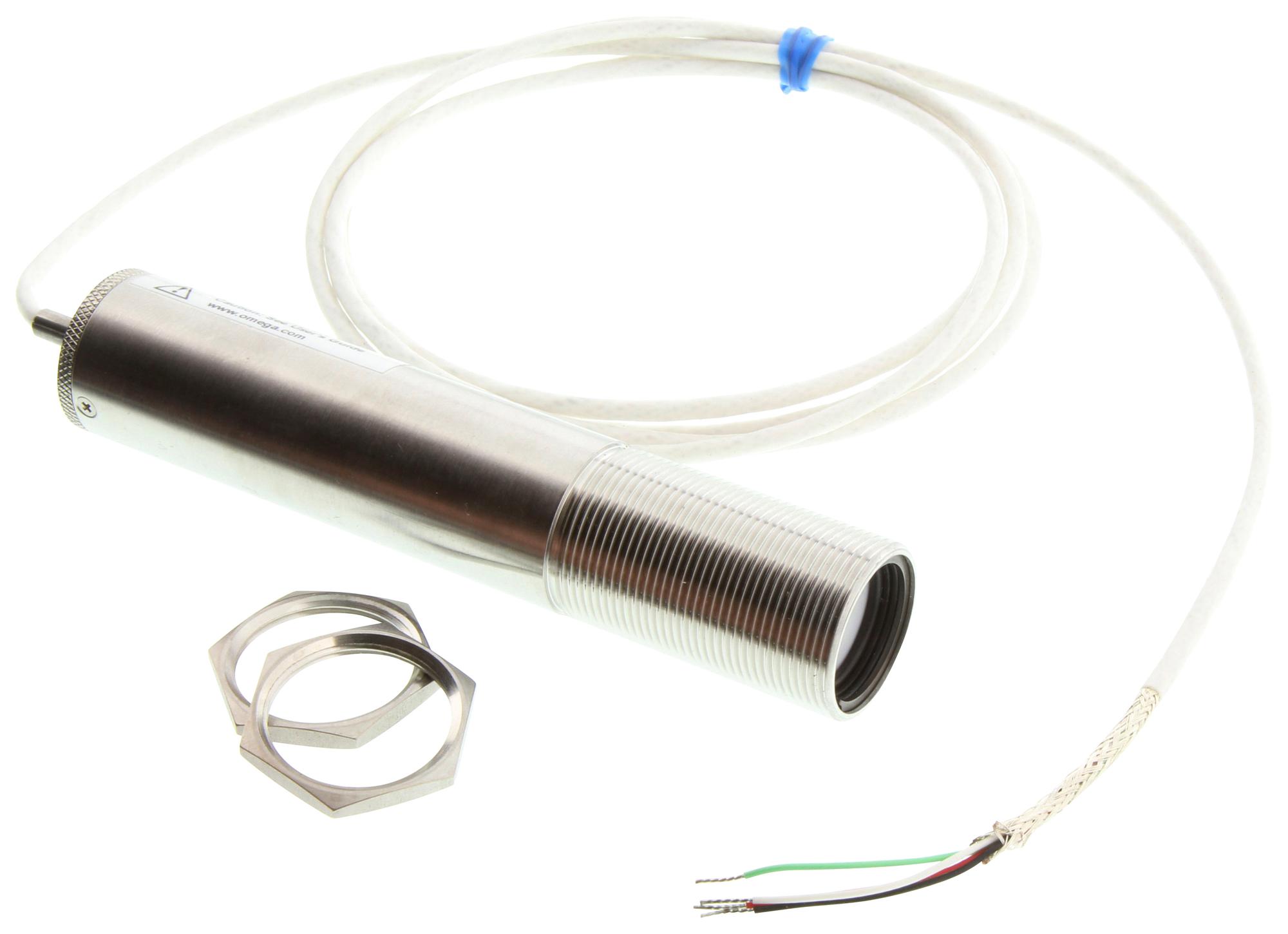

OMEGA OS137A1MVF Infrared Temperature Sensor
The Omega infrared temperature sensor transmitter model OS137A offers compact, high-performance temperature measurement with adjustable emissivity, a 10:1 optical field of view, and multiple analog outputs including 4 to 20 mA, 0 to 5 V, and 0 to 10 V. Encased in a durable stainless steel housing rated NEMA 4 (IP65), it supports temperature ranges from 0 to 100°C, -18 to 260°C, and -18 to 538°C. Features include adjustable alarm setpoints, spectral response from 5.5 to 14 microns, and laser sighting for accurate targeting up to 9.1 meters, making it suitable for industrial temperature sensing applications.
OMEGA OS137A1MVF Infrared Temperature Sensor Specifications:
- Temperature Ranges: 0 to 100°C, -18 to 260°C, -18 to 538°C
- Accuracy: 3% of reading or 4.4°C (8°F) for lower ranges, 3% of reading or 5.5°C (10°F) for higher
- Repeatability: 1% of reading or 2°F (1°C)
- Spectral Response: 5.5 to 14 microns
- Emissivity: 0.5 to 1.0, adjustable via control
- Field of View: 10 to 1
- Response Time: 150 ms
- Outputs: 4-20 mA, 0-5 VDC, 0-10 VDC, Type K thermocouple, 10 mV/Pt
- Power Supply: 12-24 VDC, 50 mA
- Housing: Stainless steel, NEMA 4 (IP65)
- Operating Temperature: 0°C to 70°C without cooling, up to 200°C with air cooling
- Dimensions: 25.4 mm OD x 127 mm L
- Laser Sighting Wavelength: 630-670 nm
- Operating Distance: Up to 9.1 meters
- Certifications: EN60025-1/11.2001 Class 2, FDA Class I, UL Listed
Buy the Omega Series OS137A Infrared Temperature Sensor: OS137A1MVF
Purchase the Omega infrared temperature sensor model OS137A online today and enhance your industrial temperature measurement tasks. This compact sensor features adjustable emissivity, a durable stainless steel housing rated NEMA 4 (IP65), and versatile analog outputs suitable for meters, controllers, and PLCs. With multiple temperature ranges up to 538°C, a 10:1 optical field of view, and laser sighting for accurate targeting at distances up to 9.1 meters, it is perfect for demanding industrial environments. Easy to install, operationally reliable, and backed by comprehensive accessories, this sensor offers superior performance for your temperature sensing needs.
Order your Omega Series OS137A infrared temperature sensor with adjustable emissivity and stainless steel housing today and ensure reliable industrial temperature monitoring.
Frequently Asked Questions
Where can I buy OMEGA OS137A1MVF?
You can click on the BUY or RFQ button to purchase OS137A1MVF from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OS137A1MVF?
You can download the OS137A1MVF datasheet or visit the OMEGA website for support.
Who is the manufacturer of OS137A1MVF?
OMEGA
