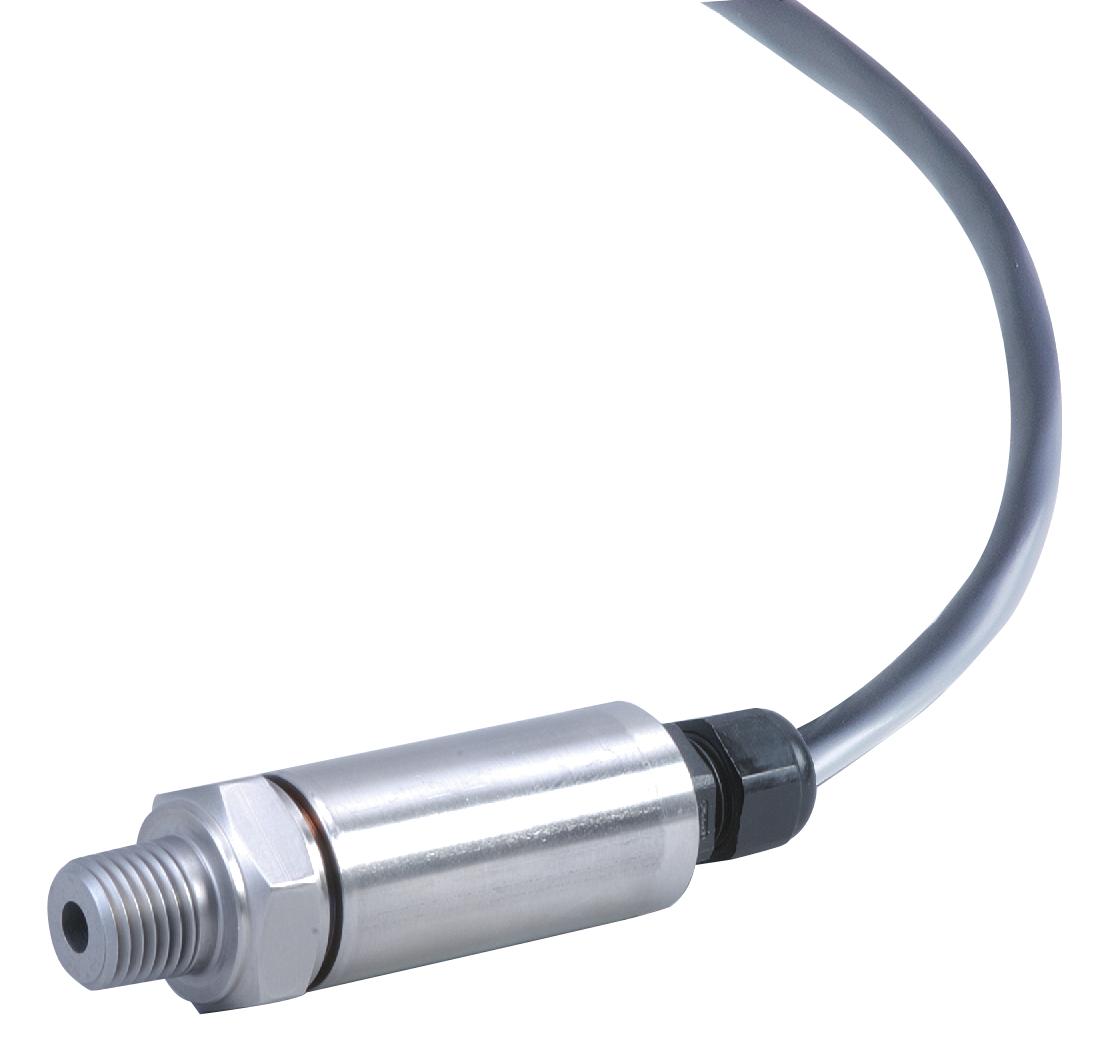

OMEGA PX3095KGI Pressure Transducer
The PX309 series high-performance general purpose pressure transducer features advanced silicon technology, offering an accuracy of ±0.25% full scale span, including linearity, hysteresis, and repeatability. It measures gauge pressure from 0 to 345 bar (0 to 5000 psi) and is constructed entirely from stainless steel for durability and corrosion resistance. It provides a 4 to 20 mA output signal, ensures high stability with low drift, and operates within a temperature range of -40°C to 85°C. The pressure port has a quarter-inch 18 MNPT connection, and the device includes a 1.5-meter cable. Comes with a 5-point NIST-traceable calibration, suitable for long-term industrial applications.
OMEGA PX3095KGI Pressure Transducer Specifications:
- Range: 0 to 345 bar (0 to 5000 psi)
- Accuracy: ±0.25% full scale span (including linearity, hysteresis, and repeatability)
- Construction: All stainless steel (316 SS for ranges up to 100 psi and 17-4 PH SS for above 100 psi)
- Output Signal: 4 to 20 mA
- Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Pressure Port: 1/4 inch 18 MNPT
- Protection Class: IP65
- Stability: ±0.25% over 1 year
- Power Supply: 24 Vdc (typical)
- Cable Length: 1.5 meters (5 feet)
- Pressure Cycles: 10 million
- Pressure Overload: 3 times rated pressure for 100 psi and above
- Vibration: 20 g
- Shock: 50 g, 11 ms half-sine
- Weight: 154 g
- Calibration: 5-point NIST-traceable
Buy the OMEGA Series PX309 Pressure Sensor: PX3095KGI
Order the OMEGA PX309 series pressure transducer online for reliable, high-accuracy pressure measurement up to 5000 psi. Designed with stainless steel construction for durability, it offers a 4-20 mA output signal suitable for industrial automation. The device features IP65 protection, a quarter-inch MNPT port, and a 1.5-meter cable for versatile installation. Comes with a 5-point NIST-traceable calibration, ensuring measurement accuracy and long-term stability. Perfect for demanding pressure monitoring in manufacturing, process control, and automation applications.
Get OMEGA PX3095KGI today—built for precision and long-lasting durability in industrial pressure monitoring.
