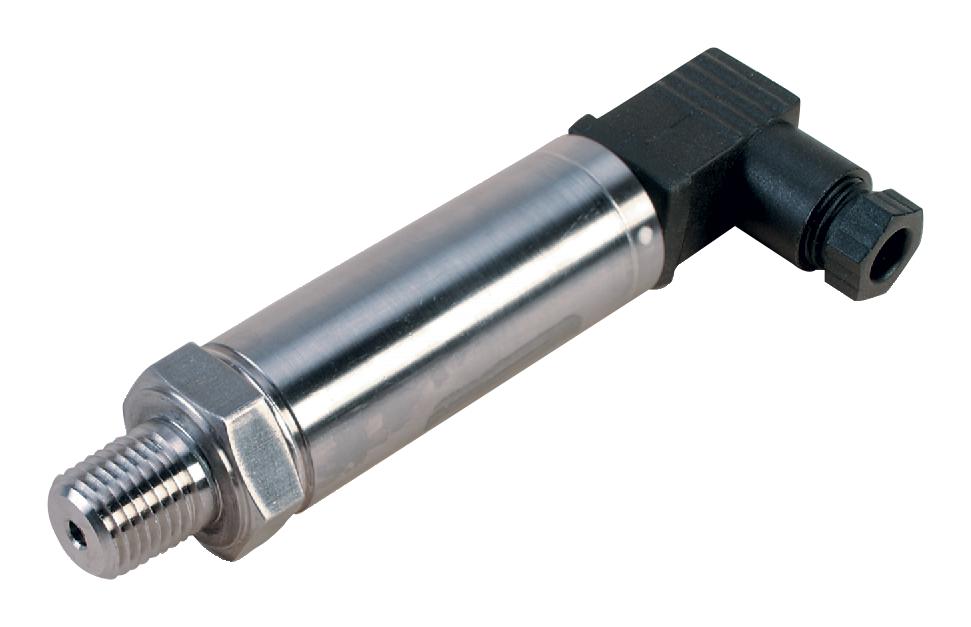

OMEGA PX41926BI pressure sensor
The PX41926BI is a high-accuracy digital pressure sensor with a measurement range of 26 to 32 inHg, designed for industrial and laboratory applications. Constructed with corrosion-resistant stainless steel, it features IP65 environmental protection and offers voltage, current, and mV/V outputs for versatile integration. With a rapid response time under 1 ms, broad temperature compensation from -45 to 127°C, and exceptional stability (+0.1% FS), this sensor reliably monitors barometric pressure in harsh environments. It includes a miniature DIN connector, is shock and vibration resistant, and complies with CE standards, ensuring precise and stable pressure readings across fluctuating conditions.
OMEGA PX41926BI pressure sensor Specifications:
- Measurement Range: 26 to 32 inHg
- Output Options: mV/V, 0 to 5 V, 0 to 10 V, 4 to 20 mA
- Accuracy: +0.08% BSL (Linearity, Hysteresis, Repeatability)
- Zero Balance: +0.5% FS, Max 1%
- Span Setting: +0.5% FS, Max 1%
- Temperature Range: -45 to 127°C (-49 to 250°F), -45 to 115°C (-49 to 240°F) for voltage/current outputs
- Compensated Range: 29 to 85°C (-20 to 185°F); less than 5 psi range: -18 to 85°C
- Thermal Effects Span: 0.5% span over compensated range
- Response Time: <1 ms
- Bandwidth: DC to 1 kHz
- Proof Pressure: 400% of span, Burst Pressure: 1000 psia
- Electrical Termination: Mini DIN connector, integral cable, or twist-lock options
- Environmental Protection: IP65/IP67 rated depending on model
- Material: 316 stainless steel wetted parts
- Pressure Port: -18 NPT female
- Weight: 115 to 200 g
- Shock Resistance: 50 g, 11 ms sine wave
- Vibration Resistance: 5-2000 Hz, 30 min cycle
- Dimensions: 81 mm length (approx. 3.2 inches); other sizes vary
- Mounting options: Factory-installed mounting bracket, optional accessories available
Buy the Omega PX41926BI – Reliable Pressure Sensor for Industrial Applications
Purchase the Omega PX41926BI online today and experience reliable, high-precision pressure measurement. Designed with corrosion-resistant stainless steel and rated IP65/IP67, it ensures durability in harsh environments. Its fast response time, broad temperature compensation, and multiple output options—mV/V, volts, and mA—make it ideal for industrial and laboratory settings. With calibration included and CE compliance, this sensor guarantees stable and accurate pressure readings, supporting your demanding applications efficiently. Order now for quality and dependable performance.
Get Omega PX41926BI today—built for precision, durability, and versatile pressure measurement in demanding industrial environments.
