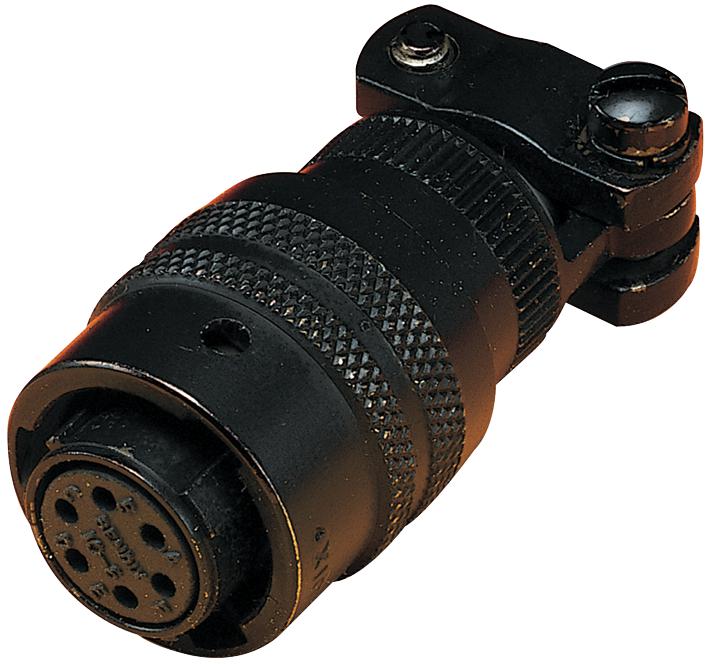

OMEGA PT06F106S Pressure Transducer Connector
The PT Series connectors by Omega provide robust and reliable connections for pressure transducers and instrumentation using multiconductor cables. Constructed with rugged aluminum shells and high-conductivity gold-plated copper alloy contacts, these connectors ensure excellent electrical performance and durability in harsh environments. Suitable for operating temperatures up to 125°C (257°F), they feature strain-relief cable clamps and secure solder contacts. The environmentally protected models withstand up to 500 cycles of coupling, with variants designed for high-temperature and extended temperature ranges, making them ideal for industrial and instrumentation applications.
OMEGA PT06F106S Pressure Transducer Connector Specifications:
- Shell Material: Aluminum alloy, cadmium plated with olive drab chromate or Black Zinc (ROHS)
- Contact Material: High-conductivity copper alloy with 0.000050 inch gold plating
- Operating Temperature Range: -55°C to 125°C (-67°F to 257°F)
- Insulation Resistance: 5000 MΩ min at 25°C (77°F)
- Voltage Drop: 55 mV max at 7.5 A for #20 contacts and #20 wire
- Environmental Durability: Up to 500 cycles of coupling and uncoupling, with protection against air pressure up to 30 psi (2 bar)
- Sealing: Optional internal sealing gland models available, rated for high temperatures up to 204°C (399°F)
- Physical Dimensions: Lengths vary by model, with specific sizes ranging from approximately 5.94 to 7.54 inches, diameter around 0.75 inches
- Connections: Male and female configurations, with models supporting 4 to 6 contacts, suited for industrial and high-temperature environments
Buy the Omega Series PT Pressure Transducer Connectors: PT06F106S
Purchase the Omega PT Series pressure transducer connector PT06F106S online today and experience reliable, high-performance connections for your industrial sensors. Designed with rugged aluminum shells and gold-plated contacts, these connectors guarantee durability and excellent electrical performance. Suitable for operating temperatures up to 125°C, they support up to 500 coupling cycles for long-lasting use. Choose from models with internal sealing glands and extended temperature variants, ideal for demanding environments. Secure your instrumentation connections now with fast online ordering and trusted quality.
Order your Omega Series PT pressure transducer connector PT06F106S today and ensure your instrumentation connections are secure, durable, and capable of withstanding harsh environments.
Frequently Asked Questions
Where can I buy OMEGA PT06F106S?
You can click on the BUY or RFQ button to purchase PT06F106S from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part PT06F106S?
You can download the PT06F106S datasheet or visit the OMEGA website for support.
Who is the manufacturer of PT06F106S?
OMEGA
