OMEGA HH520 Digital Thermometer Data Logger
The HH520 is a four-channel handheld data logger and thermometer capable of accepting Types J, K, T, and E thermocouples. It offers real-time data recording and download via USB, with a large backlit display, high accuracy, fast response, and temperature alarm functionalities. It supports data logging of up to 16,000 points per channel, with recall for up to 100 stored datasets, making it ideal for precise temperature monitoring in various applications. Compact at 187 mm high, 75 mm wide, and 29 mm deep, the device includes thermocouples, batteries, software, and a carrying case for convenient use and data management.
OMEGA HH520 Digital Thermometer Data Logger Specifications:
- Measurement Range: J: -200 to 1000°C, K: -200 to 1372°C, T: -200 to 400°C, E: -200 to 750°C
- Accuracy: (0.1% rdg + 0.7°C) between 18 to 28°C; (+0.4% rdg + 0.7°C) below -100°C
- Resolution: 0.1°C <600°C, 1.0°C ≥600°C
- Temperature Coefficient: 0.01% of reading + 0.05°C per °C
- Sample Rate: 2 samples/sec
- Input Protection: 30 Vrms max
- Power: Four 1.5 V AAA batteries (included), external power via USB
- Battery Life: Approximately 100 hrs with alkaline batteries
- Operating Environment: 0 to 50°C, 10 to 90% RH non-condensing
- Storage Environment: -20 to 60°C, 10 to 75% RH
- Dimensions: 187 x 75 x 29 mm (7.36 x 2.95 x 1.14 inches)
- Weight: 290 g (10.2 oz)
- Software Compatibility: Windows XP/Vista/7/8/10

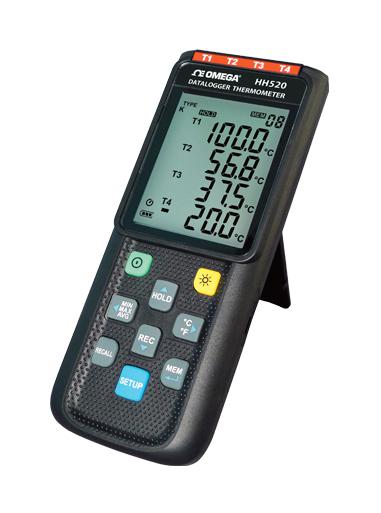

Buy the Omega Series Data Logger Thermometer: HH520
Order the Omega HH520 four-channel handheld data logger and thermometer today to ensure accurate temperature monitoring across multiple points. This robust device features wide measurement ranges for J, K, T, and E thermocouples, high-resolution data logging up to 16,000 points per channel, and instant recall of 100 saved datasets. Its large backlit display and PC software facilitate easy setup, recording, and analysis. With portable design, internal memory, and USB connectivity, the HH520 is ideal for industrial, laboratory, and field temperature assessments, offering reliable performance and easy data management.
Get Omega HH520 today—built for precise temperature logging with real-time data transfer and versatile thermocouple compatibility.
Frequently Asked Questions
Where can I buy OMEGA HH520?
You can click on the BUY or RFQ button to purchase HH520 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part HH520?
You can download the HH520 datasheet or visit the OMEGA website for support.
Who is the manufacturer of HH520?
OMEGA
