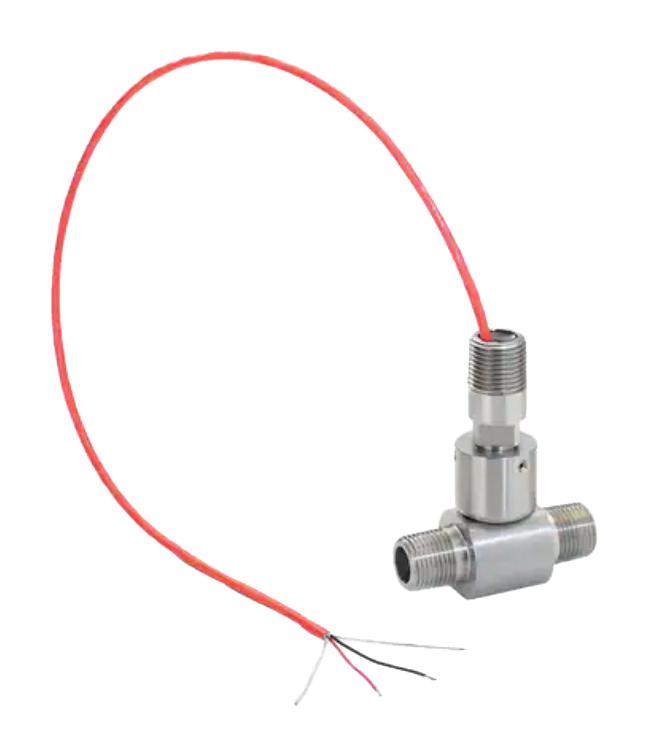

OMEGA FTB1312 Flow Meter
The FTB-1312 turbine flow meter provides precise measurement of fluid flow rates in industrial applications with a flow range of 1.4 to 11 LPM. Constructed with a 316 stainless steel body and tungsten carbide bearings, it ensures durability and resistance to wear. This flow meter features a linearity of +0.01%, operates within a pressure maximum of 345 bar, and offers outputs in pulse frequency and 4-20 mA signals. Suitable for water and low viscosity fluids, it is ideal for laboratory and industrial environments requiring highly reliable flow measurement with easy installation and maintenance.
OMEGA FTB1312 Flow Meter Specifications:
- Accuracy: +1% reading
- Pressure Max: 345 bar (5000 psi)
- Wetted Materials: Stainless Steel 316L, carbide with nickel binder
- Output: Square wave, 4-20 mA
- Supply Voltage: 10 to 30 Vdc
- Signal Frequency: up to 2000 Hz, 0.25 Hz to 5 KHz
- Temperature Range: -40 to 85°C (-40 to 185°F)
- Cable Length: 60 cm (24")
- Flow range: 1.4 to 11 LPM
- Dimensions: Refer to model-specific sizes, with NPT connections
- Pressure Rating: Up to 345 bar (5000 psi)
- Linearity: +0.01%
- Body Material: Stainless Steel 316
- Bearing: Tungsten Carbide
- Durability: Wear-resistant rotor for long service life
- Outputs: Pulse frequency and 4-20 mA
- Certifications: NEC Class I, Groups C, D, Class II, Groups E, F, G
Buy the Economical Flow Meters FTB-1312 – Reliable Fluid Measurement for Industrial Applications
Enhance your fluid measurement system with the FTB-1312 turbine flow meter, designed for industrial and laboratory use. Made with durable stainless steel and tungsten carbide bearings, it ensures precise and reliable flow readings of water and low viscosity fluids. Featuring a flow range of 1.4 to 11 LPM, accuracy of +1%, and versatile outputs including pulse frequency and 4-20 mA, this model suits demanding environments. Easy installation, maintenance, and high durability make it an essential component for efficient fluid management in various industrial processes.
Buy FTB-1312 turbine flow meter now and experience unmatched reliability and performance for precise flow measurement of low viscosity fluids in industrial setups.
