OMEGA LCGB-1K Datasheet & Stock

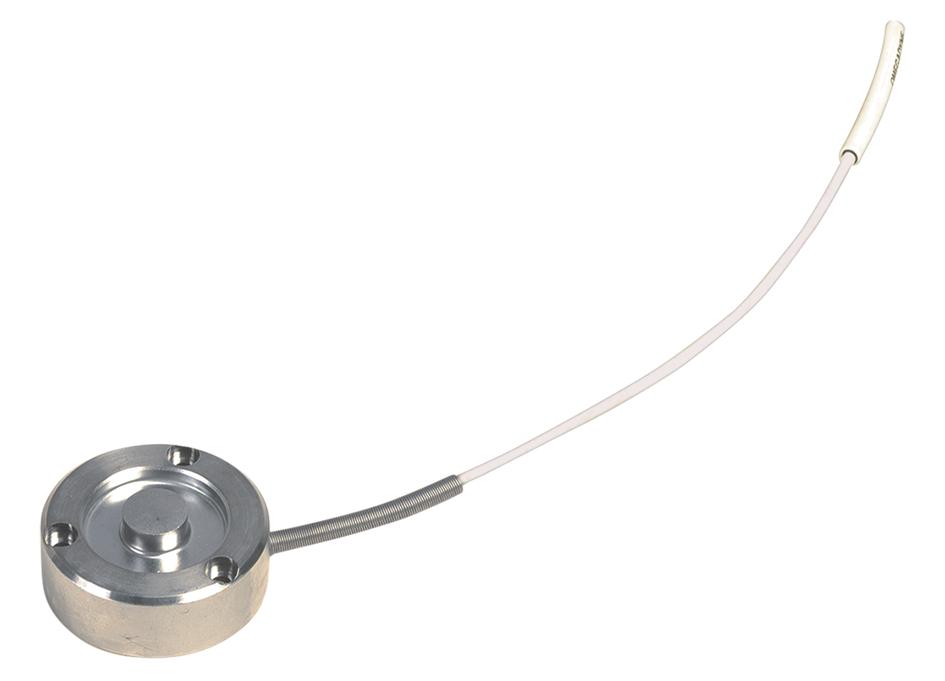

The LCGB-1K from Omega is a LCGB series miniature low-profile compression load cell with excellent long-term stability. The stainless steel construction ensures reliability in severe industrial environments. The cell is designed to be mounted on a flat surface using cap screws to secure them to the base. A load button is integral to their basic construction for even force distribution.




0lb to 1000lb capacity load cell

10VDC excitation, 2mV/V nominal output

±0.25% FSO linearity, ±0.20% FSO hysteresis, ±0.10% FSO repeatability, ±2% FSO zero balance

Operating temperature range from -54°C to 121°C

Compensated temperature range from 16°C to 71°C

Safe overload 150% of capacity, ultimate overload 300% of capacity

Bridge resistance of 350 ohm minimum

Deflection of 0.076mm (0.003"), IP54 protection class

1.5m (5') 4-conductor cable with strain relief

Compatible with DPiS, DP41-S, DP25B-S meters





Applications


Sensing & Instrumentation






Contents

Load cell, 5-point NIST-traceable calibration and 59Kohm shunt data.
