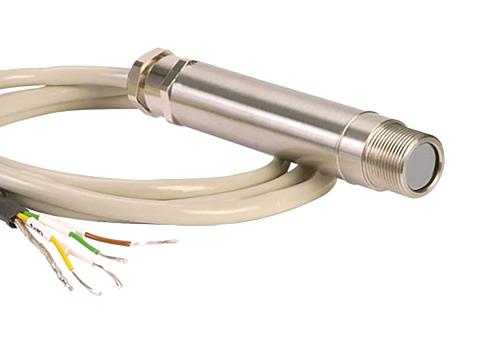

OMEGA OS301MT Infrared Temperature Sensor
The OS301 series is a high-precision, compact non-contact temperature sensor with a stainless steel IP65 housing, capable of measuring from -20 to 500°C. It features options for dual outputs including 4 to 20 mA and thermocouple signals, suitable for inaccessible or moving objects. The sensors offer fast response (240 ms), fixed emissivity at 0.95, and are equipped with Germanium lenses for accurate optics. Various field of view options (30:1) and cooling accessories are available, providing reliable and easy installation for industrial temperature measurement.
OMEGA OS301MT Infrared Temperature Sensor Specifications:
- Temperature Range: -20 to 500°C
- Emissivity Setting: Fixed at 0.95
- Response Time, t90: 240 ms
- Spectral Range: 8 to 14 um
- Supply Voltage: 24 Vdc (28 Vdc maximum)
- Output: 4 to 20 mA or thermocouple (Type J, K, T)
- Accuracy: +1% of reading or +1°C
- Repeatability: +0.5% of reading or +0.5°C
- Housing: Stainless steel, IP65 rated
- Dimensions: 103 mm length x 18 mm diameter
- Connections: M16 x 1 mm thread, 1 m cable included
- Operating Temperature: 0 to 70°C
- Humidity: Up to 95% non-condensing
Buy the Omegaflex Series OS301 Infrared Temperature Sensor: OS301MT
Order the Omegaflex OS301MT infrared temperature sensor online today and experience reliable, accurate measurements for inaccessible or moving targets. Designed with a rugged stainless steel IP65 housing, this sensor offers fast response times, fixed emissivity of 0.95, and dual output options, including 4 to 20 mA and thermocouple signals. Its compact size and easy installation make it ideal for industrial environments requiring precise thermal monitoring. Take advantage of quick delivery and support for your temperature measurement needs.
Get Omegaflex OS301MT today—built for precise and reliable industrial temperature monitoring in challenging environments.
Frequently Asked Questions
Where can I buy OMEGA OS301MT?
You can click on the BUY or RFQ button to purchase OS301MT from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part OS301MT?
You can download the OS301MT datasheet or visit the OMEGA website for support.
Who is the manufacturer of OS301MT?
OMEGA
