OMEGA STH101020 High Temp Heating Tape

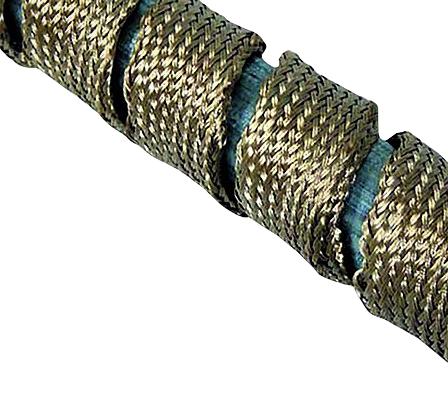

The SWH Series ultra-high temperature heating tapes are designed for applications requiring maximum exposure temperatures up to 760°C (1400°F). Made from fine gauge stranded resistance wires, these tapes are double insulated with braided Samox™, offering excellent flexibility and durability. Available in standard and wide/heavy insulation options, they are suitable for direct contact with conductive surfaces and feature integrally molded plugs. These heating tapes are ideal for industrial and laboratory heating where high temperature resistance and flexibility are critical for performance and safety.
OMEGA STH101020 High Temp Heating Tape Specifications:
- Heating Elements: 36-40 gage stranded resistance wire
- Insulation: Double braided Samox
- Dielectric Strength: In excess of 2000V
- Lead Wires: Emerge from opposite ends into separate sides of molded plug
- Maximum Temperature: 760°C (1400°F)
- Applicable for direct contact on conductive surfaces
- Heavy insulation tapes withstand up to 260°C (500°F)
- Wide tapes sewn between layers of Samox cloth
- Standard tapes made from fine gage stranded wire, flexible and resilient
- Voltage Options: 120V, 240V
- Power Range: 156 W to 3135 W depending on tape size and model
- Suitable for laboratory and industrial applications
- Some models include power leads exiting the same end; others do not
- Instruction sheet included with each product
Buy the Buy Ultra-High Temperature Heating Tapes Part Number STH101020 Online
Purchase advanced high temperature heating tapes online designed for industrial and laboratory use, with maximum exposure up to 760°C. Crafted from fine stranded resistance wires insulated with braided Samox™, these tapes provide excellent flexibility, durability, and safety under extreme conditions. Available in multiple sizes and insulation configurations, they are easy to install with integrally molded plugs. Ideal for direct contact with conductive surfaces, these tapes support high voltage and power requirements, ensuring reliable performance for manufacturing, processing, and high-temperature heating applications.
Get Samox Insulated Ultra-High Temperature Heating Tapes today—built for precision, durability, and high-temperature industrial applications.
Frequently Asked Questions
Where can I buy OMEGA STH101020?
You can click on the BUY or RFQ button to purchase STH101020 from an authorized OMEGA distributor.
How do I troubleshoot issues or seek technical support for part STH101020?
You can download the STH101020 datasheet or visit the OMEGA website for support.
Who is the manufacturer of STH101020?
OMEGA
