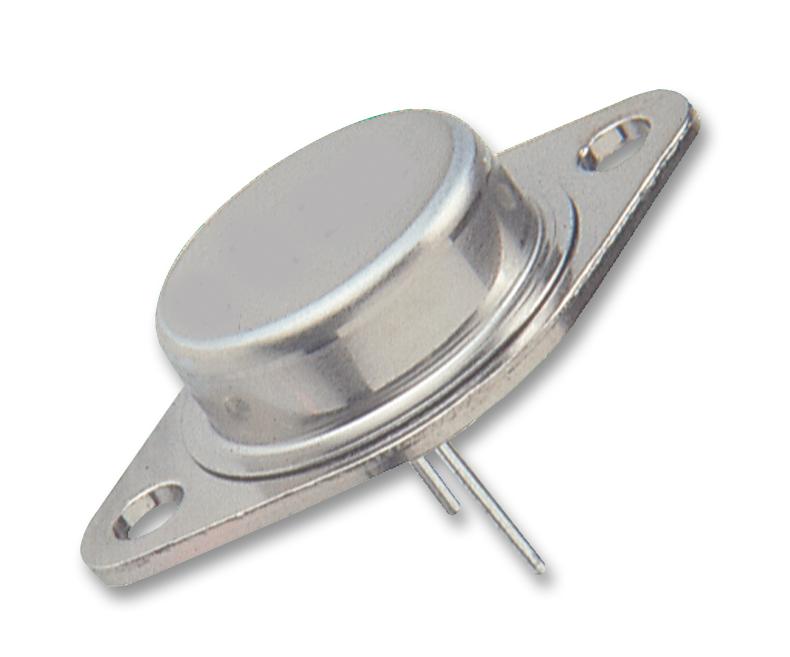

ONSEMI 2N3055AG High-Power Silicon Transistor
The 2N3055AG is a high-power NPN silicon bipolar transistor suitable for industrial applications including high-power audio amplification, motor control, and power management. It offers high current gain and bandwidth, with a safe operating area to ensure reliable operation. Capable of withstanding collector-to-base voltages of 100V, emitter-to-base voltages of 7V, and continuous collector current of 15A, it features low thermal resistance of 1.52°C/W for efficient heat dissipation. Its Pb-Free and RoHS-compliant design makes it ideal for power switching circuits such as relay drivers, DC-DC converters, and inverters.
ONSEMI 2N3055AG High-Power Silicon Transistor Specifications:
- Collector-Emitter Voltage: 100V
- Collector-Base Voltage: 200V
- Emitter-Base Voltage: 7V
- Collector Current - Continuous: 15A
- Total Device Dissipation: 115W at 25°C
- Thermal Resistance, Junction-to-Case: 1.52°C/W
- Operating and Storage Junction Temperature Range: -65°C to +200°C
- Pb-Free and RoHS Compliant
- Case: TO-204 (TO-3)
- Max Power Dissipation: 115W
- Derate above 25°C: 0.65W/°C
Buy the ON Semiconductor 2N3055AG – Reliable High-Power Transistor for Industrial Applications
Discover the dependable performance of the high-power silicon transistor designed for industrial applications. The 2N3055AG handles voltages up to 100V, provides 15A continuous current, and features low thermal resistance for efficient heat dissipation. Perfect for high-power audio, motor control, and power switching circuits such as relays and inverters. Its RoHS compliant and Pb-Free construction ensures eco-friendly manufacturing. Purchase online today to ensure your project benefits from robust, high-quality power transistors that guarantee durability and optimal performance in demanding environments over a wide temperature range.
Buy ON Semiconductor 2N3055AG now and experience unmatched reliability and performance in high-power switching and amplification circuits.
Frequently Asked Questions
Where can I buy ONSEMI 2N3055AG?
You can click on the BUY or RFQ button to purchase 2N3055AG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 2N3055AG?
You can download the 2N3055AG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 2N3055AG?
ONSEMI
