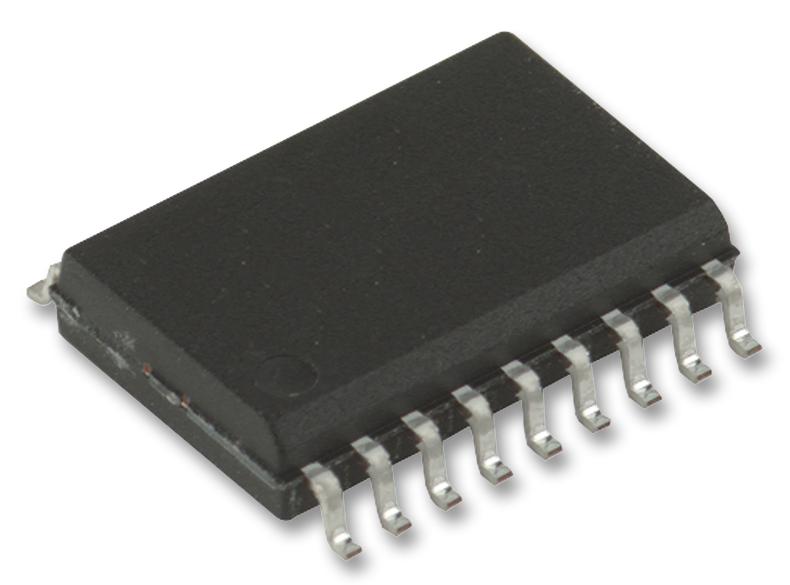

ONSEMI 74LVT244MTC octal buffer
The 74LVT244 and 74LVTH244 are low-voltage octal buffers and line drivers designed for 3.3V Vcc applications with TTL interface capability for 5V systems. These devices feature three-state outputs, power-up/down high impedance for glitch-free bus loading, and capability for live insertion/extraction. The 74LVTH244 includes bushold inputs eliminating external pull-up resistors. Fabricated with advanced BiCMOS technology, they are suitable for memory address drivers, clock drivers, and bus transmitters, offering high speed and low power dissipation for high-density PCB designs.
ONSEMI 74LVT244MTC octal buffer Specifications:
- Supply Voltage Range: 2.7V to 3.6V
- Input Voltage Range: 0V to 5.5V
- Output Voltage Range: 0V to Vcc
- Output Current Source/Sink: ±32mA / ±64mA
- Power Dissipation: Low power BiCMOS technology
- ESD Protection: Human-body model > 2000V
- Maximum Operating Temperature: -40°C to +85°C
- Package types include SOIC, SOP, SSOP, TSSOP
- Propagation Delay (Data to Output): 1.1-4.4 ns
- Output Enable/Disable Time: 1.1-4.4 ns
- Input and output are TTL compatible
- Power-up/power-down high impedance for glitch-free operation
- Designed for high-density PCB applications
- Advanced BiCMOS fabrication for high speed and low power
- Leakage current: minimal during power-off state
Buy the Fairchild Series 74LVT244: Low Voltage Octal Buffer Line Driver
Purchase your Fairchild Series 74LVT244 low-voltage octal buffer today and ensure your projects benefit from high-speed, low power operation with glitch-free power-up/down capability. Specifically designed for 3.3V systems, this device features bushold inputs eliminating external resistors, making it ideal for memory address drivers, clock drivers, and bus transmitters. Available in various package formats, it guarantees robust performance, ESD protection, and high current sourcing and sinking. Buy online now to upgrade your electronics with trusted, high-quality buffering and line-driving performance.
Order your Fairchild Series 74LVT244 low-voltage octal buffer today and enhance your electronic designs with reliable, high-speed performance for PCB systems.
Frequently Asked Questions
Where can I buy ONSEMI 74LVT244MTC?
You can click on the BUY or RFQ button to purchase 74LVT244MTC from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part 74LVT244MTC?
You can download the 74LVT244MTC datasheet or visit the ONSEMI website for support.
Who is the manufacturer of 74LVT244MTC?
ONSEMI
