ONSEMI MURF1620CTG Ultrafast Rectifier
The MURF1620CTG is an ultrafast rectifier designed for switching power supplies and inverters, featuring a 200V maximum repetitive reverse voltage, 16A forward current, and a fast 35ns recovery time. It includes a high temperature glass passivated junction, UL 94 V-0 epoxy, and is Pb-free, suitable for demanding industrial applications. Its epoxy mold case ensures durability, thermal stability, and ease of soldering, making it ideal for use in high-speed switching, freewheeling, and rectification circuits with reliable performance at elevated temperatures.
ONSEMI MURF1620CTG Ultrafast Rectifier Specifications:
- Maximum Repetitive Reverse Voltage: 200 V
- Maximum Average Rectified Forward Current: 16 A
- Peak Repetitive Forward Current: 16 A
- Non-repetitive Peak Surge Current: 100 A
- Maximum Instantaneous Forward Voltage: 0.975 V at 8A at 25°C
- Maximum Instantaneous Reverse Current: 5.0 μA at 25°C, 250 μA at 150°C
- Maximum Reverse Recovery Time: 25 ns at 1A, 0.5A, 0.25A
- Operating Junction and Storage Temperature: -65°C to +150°C
- Thermal Resistance: Junction-to-Case 4.2°C/W
- Isolation Voltage (RMS): 4500 V for 0.3 sec

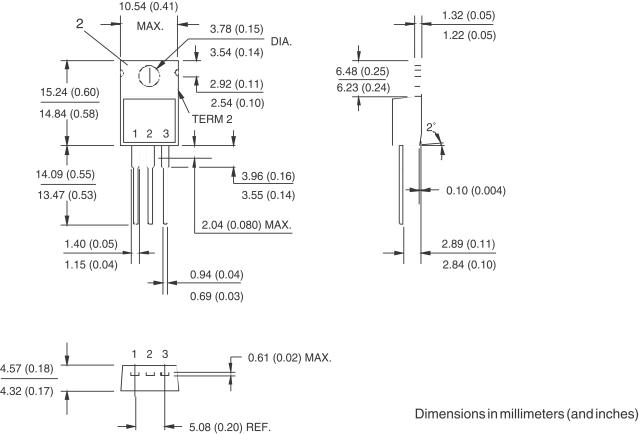

- Case Material: Epoxy Molded, TO-220 Fullpack
- Lead Soldering Temperature: Max 260°C for 10 sec
- UL Flammability Rating: UL 94 V-0
- Package: TO-220, Pb-free
- Operating Temperature Range: -65°C to +150°C
- Soldering Lead Temperature: 260°C
Buy the Buy ON Semiconductor MURF1620CTG Part Number MURF1620CTG Online
Order the ON Semiconductor MURF1620CTG ultrafast rectifier diode online today and enjoy fast 35ns recovery times, high current capacity, and reliable performance in switching power supplies and inverters. Designed for demanding environments, this Pb-free TO-220 package provides excellent thermal stability, UL 94 V-0 flame rating, easy soldering, and high voltage operation up to 200V. Perfect for industrial, automotive, and power management applications, ensuring efficiency and durability with each use.
Buy ON Semiconductor MURF1620CTG now and experience unmatched reliability and performance with high-speed switching in industrial power applications.
Frequently Asked Questions
Where can I buy ONSEMI MURF1620CTG?
You can click on the BUY or RFQ button to purchase MURF1620CTG from an authorized ONSEMI distributor.
How do I troubleshoot issues or seek technical support for part MURF1620CTG?
You can download the MURF1620CTG datasheet or visit the ONSEMI website for support.
Who is the manufacturer of MURF1620CTG?
ONSEMI
